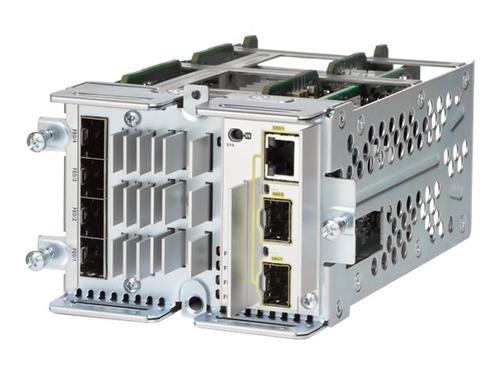

Cisco Ethernet Switch Module for the Cisco 2010 Connected Grid Router
Cisco Ethernet Switch Module for the Cisco 2010 Connected Grid Router - Switch - Managed - 4 x 100 Mbit SFP + 1 x combo Gigabit SFP + 1 x Gigabit SFP - plug-in module - PoE - for Cisco 2010, 2010 Connected Grid
- Brand
- Cisco IOT
- Product code
- GRWIC-D-ES-6S=
- SKU
- BC89CZAWTSIKS
- EAN/GTIN
- 882658435584
- Rugged industrial design and substation compliance: IEC-61850-3 and IEEE 1613 for utility substation environments
- Tools for easy deployment, management, and replacement
- Extensive instrumentation and remote diagnostic capabilities
- Advanced quality of service (QoS) capabilities to support mission-critical substation applications
- Comprehensive network security features based on open standards
€2166.94
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Switch - 6 ports - Managed |
| Enclosure Type | Plug-in module |
| Subtype | Fast Ethernet |
| Ports | 4 x 100 Mbit SFP + 1 x combo Gigabit SFP + 1 x Gigabit SFP |
| Power over Ethernet (PoE) | PoE |
| Performance | Bandwidth:8 Gbps Forwarding performance:6.5 Mpps |
| Capacity | MAC addresses:4000 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, SNMP 2c, TFTP, CLI |
| Encryption Algorithm | MODBUS |
| Authentication method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Switching, routing, VPN support, DoS attack prevention, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag |
| RAM | 256 MB DDR2 SDRAM |
| Status Indicators | System |
| Expansion / Connectivity | |
| Interfaces | 5 x SFP (mini-GBIC) 1 x management RJ-45 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, VCCI-I, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, EN 300 386 |
| Dimensions & Weight | |
| Width | 10.2 cm |
| Depth | 19.8 cm |
| Height | 7.6 cm |
| Weight | 0.91 kg |
| Environmental Parameters | |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Compatibility Information | |
| Designed For | Cisco 2010, 2010 Connected Grid |
