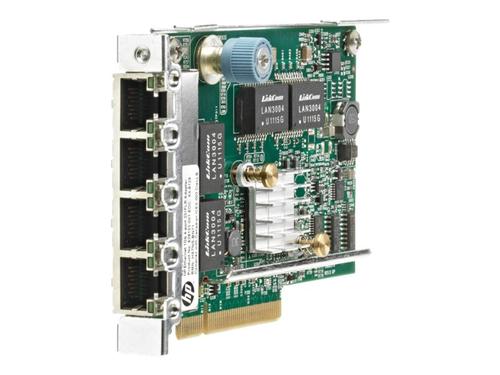

HPE 331FLR
HPE 331FLR - Network adapter - PCIe 2.0 x4 - Gigabit Ethernet x 4 - for Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, ProLiant DL560 Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- 629135-B22
- SKU
- 97C2CDNR6SHXI
- EAN/GTIN
- 888793913765
- Aggregate, full duplex transfer rate of 8 Gb/s per adapter delivers outstanding network performance that improves response time and removes bottlenecks
- Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties
- Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores
€97.64
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| Networking | |
| Ports | Gigabit Ethernet x 4 |
| Connectivity technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data transfer rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Remote Management Protocol | SNMP |
| Status Indicators | Port transmission speed, link/activity |
| Features | VLAN support, full duplex mode, Jumbo Frames support, PXE support, LSO, Energy Efficient Ethernet, TSO, MSI-X, TCP/IP checksum offload, UDP/IP checksum offload |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
| Processor / Memory | |
| Processor | 1 x Broadcom BCM5719 |
| Expansion / Connectivity | |
| Expansion slots | 1 x FlexibleLOM |
| Interfaces | 4 x Ethernet 1000 - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, VCCI Class B ITE, EN55024, FCC Part 15, EN 60950-1, WEEE, RoHS, ICES, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN22, KN24, EN55022:2006 Class B |
| Power | |
| Power Consumption Operational | 5.5 Watt |
| Software / System Requirements | |
| Software included | HP Systems Insight Manager (HP SIM) |
| OS Required | SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.1, VMware ESXi 5.0 |
| Dimensions & Weight | |
| Depth | 11.75 cm |
| Height | 7.62 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Apollo 4520 Gen9 HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10 HPE ProLiant DL120 Gen10, DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL180 Gen9, DL180 Gen9 Base, DL180 Gen9 Entry, DL180 Gen9 Storage, DL20 Gen9, DL20 Gen9 Entry, DL20 Gen9 Performance, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL380 Gen9 High Performance, DL385 Gen10, DL385 Gen10 Base, DL385 Gen10 Entry, DL385 Gen10 High-Performance, DL385 Gen10 Performance, DL385 Gen10 SMB, DL385 Gen10 Solution, DL388 Gen10 Network Choice, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL560 Gen9, DL560 Gen9 Base, DL560 Gen9 Entry, DL560 Gen9 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, XL170r Gen10, XL170r Gen10 24TB Server for Cohesity DataPlatform, XL170r Gen10 36TB Add-on Server for Cohesity DataPlatform, XL170r Gen10 Server for BlueData EPIC, XL170r Gen9, XL190r Gen10, XL190r Gen10 for HPE Ezmeral Container Platform, XL190r Gen9, XL230a Gen9 Compute Tray, XL230a Gen9 Compute Tray (12G), XL230a Gen9 Compute Tray (6G), XL230a Gen9 NHP Compute Tray (12G), XL270d Gen10, XL270d Gen10 for HPE Ezmeral Container Platform, XL450 Gen10 HPE SimpliVity 325 Gen10 Node, 380 Gen10 G Node, 380 Gen10 H Node, 380 Gen10 Network Choice G Node, 380 Gen10 Network Choice H Node HPE StoreEasy 1850, 3850 Gateway Single Node |
