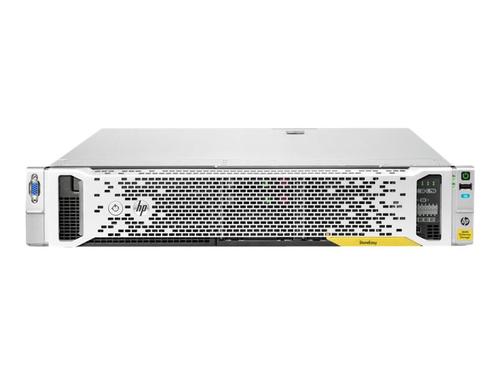

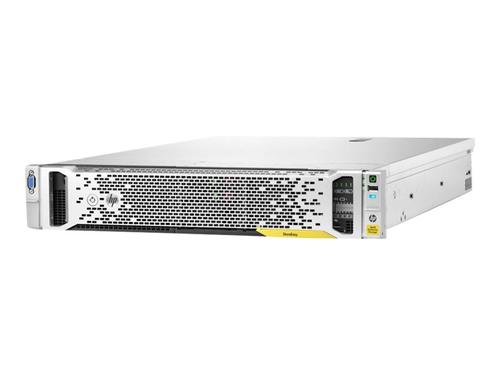

HP StoreEasy 3840 Gateway Storage
- Brand
- Hewlett Packard Enterprise
- Product code
- E7X03A
- SKU
- PYYETLA2C96OG
- EAN/GTIN
- 4514953690561
- Optimized for file storage in the enterprise
- Saves your business time and money for greater efficiency
- Safeguard your data
- High availability prevents user and organization disruption
Description
Optimized for file storage in the enterprise
The HPE StoreEasy 3000 Gateway Storage comes to your business pre-configured with hardware and the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment. Best practices driven storage provisioning tool discovers system storage and recommends the most efficient setup for optimum performance, optimum capacity or a balanced configuration based on the available storage. HPE StoreEasy Dashboard consolidates all key information in a single interface. Easily monitor capacity utilization, performance, and health from a single UI designed for an IT generalist. It reduces the need to navigate multiple tools and interfaces.
Saves your business time and money for greater efficiency
The HPE StoreEasy 3000 Gateway Storage supports large numbers of users thanks to a high-performance file serving controller and a wide range of disk drives. Utilize a broad range of file access protocols, including Microsoft Hyper-V and SQL Server application storage over SMB3 or iSCSI. File sync and share feature enables mobile workers to access their files from anywhere, while providing corporate data controls including data encryption, data wipe, user lock screen password enforcement, file classification and storage quotas. WSS2012 R2 models only. You can increase capacity use with non-intrusive data de-duplication that provides an average 50-60% in space savings. Reduce your branch office WAN usage by automatically caching frequently accessed corporate datacenter files with Hosted BranchCache.
Safeguard your data
The HPE StoreEasy 3000 Gateway Storage protects data while at rest with file system encryption and BitLocker Drive Encryption, and while it is being transferred with SMB3 encryption and signing. Use File Classification Infrastructure to dynamically identify files based on sensitivity and implement sophisticated access controls using Active Directory Rights Management Services. WSS2012 R2 models only. Install and run endpoint protection such as antivirus on the system itself - eliminating the cost and complexity of connecting an external endpoint protection server. Prevent against data loss with Volume Shadow Copy Service online snapshots and support for agent based backup software. Leverage optional HPE LiveVault and HPE Data Protector software for highly secure and efficient policy driven offsite cloud and hybrid cloud backup.
High availability prevents user and organization disruption
The HPE StoreEasy 3000 Gateway Storage helps you increase uptime of the system with such standard features as near continuous health monitoring with HPE Active Health System, mirrored OS disks, redundant fans and power, and advanced memory protection. Confidently deploy large volumes leveraging improved file system online self-healing, online verification, and precise and rapid repair that massively reduces downtime from file corruption.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total storage capacity | 0 GB |
| Width | 44.55 cm |
| Depth | 69.85 cm |
| Height | 8.73 cm |
| Weight | 22.68 kg () |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon E5-2609V2 2.5 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 2 |
| RAM | 16 GB (installed) / 384 GB (supported) - DDR3 |
| Storage Controller | |
| Type | RAID |
| Interface type | SATA 3Gb/s / SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Remote Management Protocol | SNMP, IPMI 2.0, SMASH CLP |
| Network Services Compatibility | DNS, DHCP, Network File System (NFS), Server Message Block (SMB) |
| Features | Wake on LAN (WoL), PXE support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP) |
| Expansion / Connectivity | |
| Expansion Bays | 8 (total) / 6 (free) x hot-swap - 2.5" SFF |
| Expansion slots | 24 (total) / 20 (free) x DIMM 240-pin 1 (total) / 1 (free) x PCI Express 3.0 x16 (full-length, full-height) 1 (total) / 1 (free) x PCI Express 3.0 x8 (half-length, full-height) 1 (total) / 0 (free) x FlexibleLOM 1 (total) / 1 (free) x PCI Express 2.0 x8 (half-length, full-height) |
| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 1 x management - RJ-45 7 x USB 2.0 2 x VGA - HD-15 1 x serial |
| Miscellaneous | |
| Compliant Standards | ACPI 2.0, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438 |
| Software / System Requirements | |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Standard |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
