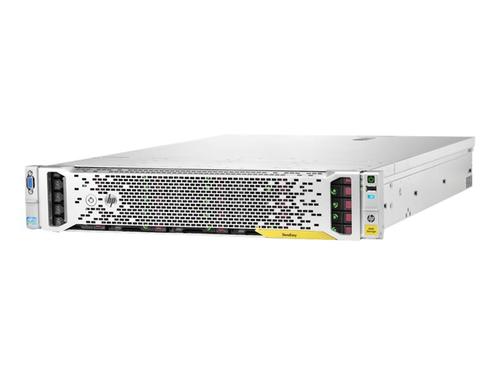

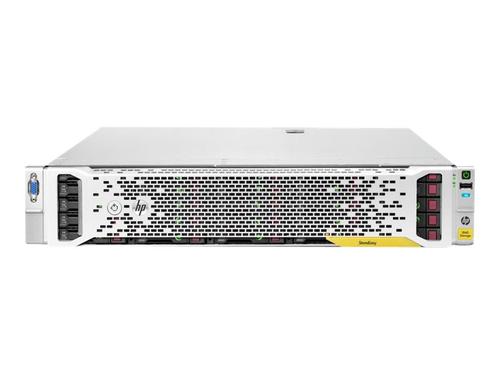

HP StoreEasy 1840 13.2TB SAS Storage
- Brand
- Hewlett Packard Enterprise
- Product code
- E7W87A
- SKU
- 79Y9U21F3JFA3
- EAN/GTIN
- 888182409374
- Optimized - tailored for your file storage
- Efficient - saves you money and time
- Protection - safeguards your data
Description
Efficient - saves you money and time
HPE StoreEasy 1000 Storage supports a large numbers of users with a high performance file serving controller and a wide range of disk drives including solid state disks (SSDs). A broad range of file access protocols, including Microsoft Hyper-V and SQL Server application storage over SMB3 or iSCSI. Increase capacity use with non-intrusive data deduplication that provides an average 50-60% in space savings. Reduce your branch office WAN usage by automatically caching frequently accessed corporate datacenter files with Hosted BranchCache.
Optimized - tailored for your file storage
The HPE StoreEasy 1000 Storage comes with pre-configured hardware with the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment. HPE StoreEasy Dashboard consolidates all key status information in a single interface. Easily monitor capacity utilization, performance, and health from a single UI designed for an IT generalist. Reduces navigation of multiple tools and interfaces for system management. Best practices driven storage provisioning tool discovers system storage and recommends the setup for optimum performance, optimum capacity or a balanced configuration based on the available storage.
Protection - safeguards your data
The HPE StoreEasy 1000 Storage protects data while at rest with file system encryption and BitLocker drive encryption, and while it is being transferred with SMB3 encryption and signing.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total storage capacity | 13.2 TB |
| Max Supported Capacity | 27.6 TB |
| Installed Devices / Modules Qty | 11 (installed) / 23 (max) |
| Width | 44.55 cm |
| Depth | 69.85 cm |
| Height | 8.73 cm |
| Weight | 18.59 kg () |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon E5-2609V2 2.5 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 2 |
| RAM | 16 GB (installed) / 384 GB (supported) - DDR3 |
| Storage Controller | |
| Type | RAID |
| Interface type | SATA 6Gb/s / SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM |
| Hard drive | |
| Type | HDD - hot-swap - 2.5" SFF |
| Capacity | 11 x 1.2 TB |
| Interface type | SAS |
| Data transfer rate | 600 Mbps |
| Spindle Speed | 10000 rpm |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Network / Transport Protocol | TCP/IP |
| Remote Management Protocol | SNMP, IPMI 2.0, SMASH CLP |
| Network Services Compatibility | DNS, DHCP, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Expansion / Connectivity | |
| Expansion Bays | 25 (total) / 12 (free) x hot-swap - 2.5" SFF |
| Expansion slots | 24 (total) / 20 (free) x DIMM 240-pin 1 (total) / 1 (free) x PCI Express 3.0 x16 (full-length, full-height) 1 (total) / 0 (free) x PCI Express 3.0 x8 (half-length, full-height) 1 (total) / 1 (free) x PCI Express 2.0 x8 (half-length, full-height) 1 (total) / 0 (free) x FlexibleLOM |
| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 1 x management - RJ-45 6 x USB 1 x serial 2 x VGA |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, GB 9254, CNS 13438 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 Watt |
| Software / System Requirements | |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Standard |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
