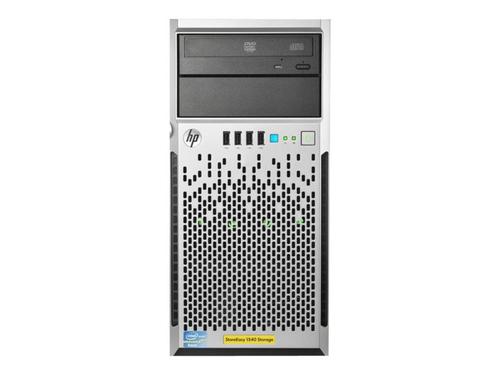

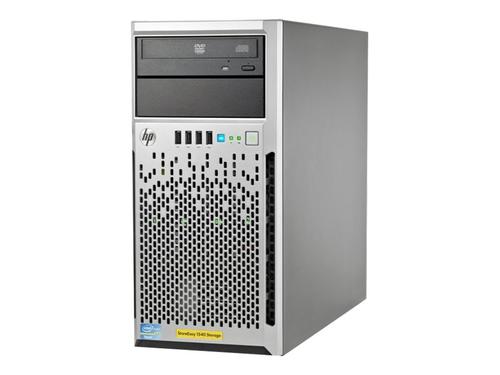

HP StoreEasy 1540 16TB SATA Storage
- Brand
- Hewlett Packard Enterprise
- Product code
- E7W79A
- SKU
- 1SY6PRJMCFPJ6
- EAN/GTIN
- 888182409299
- Optimized: tailored for your file storage
- Efficient: saves you money and time
- Protection: safeguards your data
- Highly available: prevents your user and organization disruption
Description
Optimized:tailored for your file storage
The HPE StoreEasy 1000 storage comes with pre-configured hardware with the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment. Best practices driven storage provisioning tool discovers system storage and recommends the setup for optimum performance, optimum capacity or a balanced configuration based on the available storage.
Efficient:saves you money and time
HPE StoreEasy 1000 storage supports a large numbers of users with a high performance file serving controller and a wide range of disk drives including solid state disks (SSDs). Increase capacity use with non-intrusive data deduplication that provides an average 50-60% in space savings. Reduce your branch office WAN usage by automatically caching frequently accessed corporate datacenter files with Hosted BranchCache.
Protection:safeguards your data
The HPE StoreEasy 1000 storage protects data while at rest with file system encryption and BitLocker drive encryption, and while it is being transferred with SMB3 encryption and signing. Use file classification infrastructure to dynamically identify files based on sensitivity and implement sophisticated access controls using active directory rights management services. Install and run endpoint protection such as antivirus on the system itself - reducing the cost and complexity of connecting an external endpoint protection server.
Highly available:prevents your user and organization disruption
The HPE StoreEasy 1000 storage increases uptime with such standard features as near continuous health monitoring with HPE active health system, mirrored OS disks, redundant fans and power, and advanced memory protection. Confidently deploy large volumes leveraging improved file system online self-healing, online verification, and precise and rapid repair that massively reduce downtime from file corruption.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4U |
| Total storage capacity | 16 TB |
| Max Supported Capacity | 16 TB |
| Installed Devices / Modules Qty | 4 (installed) / 4 (max) |
| Width | 17.5 cm |
| Depth | 47.52 cm |
| Height | 36.82 cm |
| Weight | 18.96 kg () |
| Processor / Memory | |
| Processors Installed | 1 x Intel Core i3 4130 3.4 GHz |
| Number of Cores | Dual-Core |
| Max Supported Qty | 1 |
| RAM | 8 GB DDR3 |
| Storage Controller | |
| Type | RAID |
| Interface type | SATA 6Gb/s / SAS 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Hard drive | |
| Type | HDD - hot-swap - 3.5" LFF |
| Capacity | 4 x 4 TB |
| Interface type | SATA 6Gb/s |
| Data transfer rate | 600 Mbps |
| Spindle Speed | 7200 rpm |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Remote Management Protocol | SNMP, IPMI 2.0, SMASH CLP |
| Network Services Compatibility | DNS, DHCP, Network File System (NFS), Server Message Block (SMB) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 0 (free) x hot-swap - 3.5" LFF |
| Expansion slots | 1 (total) / 1 (free) x PCI Express 2.0 x4 (half-length, full-height) 1 (total) / 1 (free) x PCI Express 2.0 x8 (full-length, full-height) 1 (total) / 0 (free) x PCI Express 3.0 x8 (full-length, full-height) 1 (total) / 1 (free) x PCI Express 3.0 x16 (full-length, full-height) 4 (total) / 2 (free) x DIMM 240-pin |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 1 x management - RJ-45 4 x USB 2.0 1 x serial 1 x VGA 2 x USB 3.0 |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, BSMI CNS 13438, GB 9254 |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Provided | 460 Watt |
| Software / System Requirements | |
| Storage Operating System | Microsoft Windows Storage Server 2012 R2 Standard |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
