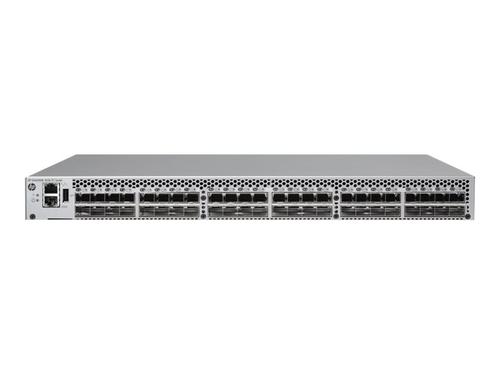

HP SN6000B 48/24 Prt Side Intk FC Switch
- Brand
- Hewlett Packard Enterprise
- Product code
- E7X99A
- SKU
- 4IACRRD4GLL01
- EAN/GTIN
- 888182650226
- Flexible fabrics
- Metro cloud connectivity
- Operational simplicity for administrators
- Cloud optimized performance and load balancing
Description
Flexible fabrics
The HPE SN6000B fiber channel switch provides high speed 16 Gb/s optimized inter switch links (ISLs) providing twice the performance as previous generation fiber channel switches. The net result is there are fewer links, fewer cables, fewer ports and less power for the same performance.
Metro cloud connectivity
The HPE SN6000B FC switch offers operating speeds of 16 Gb/s offer a wide range of performance for long distance connectivity.
Operational simplicity for administrators
The HPE SN6000B FC switch provides Diagnostic Ports (D Ports) that enable administrators to identify and isolate optics and cable problems, reducing fabric deployment and diagnostic times. Use D Ports to run a variety of tests for ports, SFPs, and cables for faults, latency, and distance.
Cloud optimized performance and load balancing
The HPE SN6000B fiber channel switch provides aggregate 1536 Gb full-duplex throughput and any eight ports can be trunked for 128 Gb Inter-Switch Links (ISLs). Exchange-based Dynamic Path Selection (DPS) optimizes fabric-wide performance and load balancing by automatically routing data to the most efficient available path.
| General | |
|---|---|
| Device type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 24 x 16Gb Fibre Channel SFP+ |
| Remote Management Protocol | SNMP 1, SNMP 3, HTTP, SMI-S, SSH, CLI |
| Encryption Algorithm | 256-bit AES |
| Features | Full duplex capability, auto-sensing per device, Syslog support, firmware upgradable |
| Expansion / Connectivity | |
| Interfaces | 48 x 16Gb Fibre Channel SFP+ 1 x USB Type A management 1 x 100Base-TX RJ-45 management 1 x serial RJ-45 management |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| Cables included | 1 x serial cable |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS |
| Manufacturer Selling Program | HPE Complete |
| Software / System Requirements | |
| Software included | Brocade Advanced Zoning, Brocade Advanced Web Tools, HP SAN Network Advisor Professional, Brocade EZ Switch |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 44.3 cm |
| Height | 4.3 cm |
| Weight | 9.16 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 1 year - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
