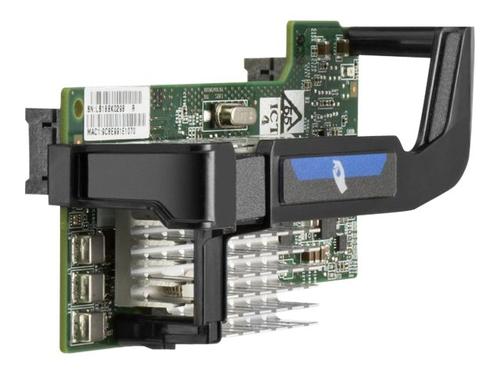

HPE FlexFabric 534FLB
700741-B21 - 887111291967
HP FlexFabric 10Gb 2P 534FLB Adptr
- Brand
- Hewlett Packard Enterprise
- Product code
- 700741-B21
- SKU
- JER1AMVMMM2OI
- EAN/GTIN
- 887111291967
- Full hardware offload of iSCSI and FCoE storage protocol processing for highest performance converged Ethernet data and storage networks
- Dual-port 10GbE Flex-10 FlexibleLOM network adapter that provides the flexibility to choose the type of LOM to meet growing infrastructure needs
- Industry-leading throughput and latency performance
- Supports HPE's Flex-10 blade interconnect technology
- User configurable bandwidth settings when combined with the 10Gb Flex-10 Virtual Connect module
- Up to 40Gb/s bi-directional near line rate throughput
- Hardware acceleration and offloads for stateless TCP/IP, TCP Offload Engine (TOE)
- Improved small packet performance
- Support for Preboot eXecution Environment (PXE)
- Integrated PHY and MAC
- Supports for SR-IOV (Windows)
€707.93
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Specifications
General
Device type
Network adapter
Form factor
Plug-in card
Interface (Bus) Type
PCI Express 2.0 x8
PCI Specification Revision
PCIe 2.0
Networking
Ports
10Gb Ethernet x 2
Connectivity technology
Wired
Data Link Protocol
10 Gigabit Ethernet
Data transfer rate
10 Gbps
Features
TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, PXE support, Single Root I/O Virtualization (SR-IOV), tagged VLAN, TCP Offload Engine (TOE)
Compliant Standards
IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.3ap, IEEE 802.1Qau
Processor / Memory
Processor
1 x Broadcom BCM57810S
RAM
900 MB
Expansion / Connectivity
Interfaces
2 x 10Gb Ethernet
Miscellaneous
Compliant Standards
FCC Class A certified, UL, BSMI CNS 13438 Class A, WEEE, RoHS, FCC Part 15 A, AS/NZS, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008, ICES-003 issue 4 Class A, KN24, KN22 Class A, EN55024:1998 + A1 + A2, EN 55022 Class A
Software / System Requirements
OS Required
SunSoft Solaris 10, Microsoft Windows Server 2008 SP2, Red Hat Enterprise Linux Server, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2008 R2 SP1 (32/64 bits), VMware vSphere 5.0, VMware vSphere 4.1
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)
Compatibility Information
Designed For
HPE ProLiant BL420c Gen8, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance, WS460c Gen8, WS460c Gen8 Graphics Expansion
