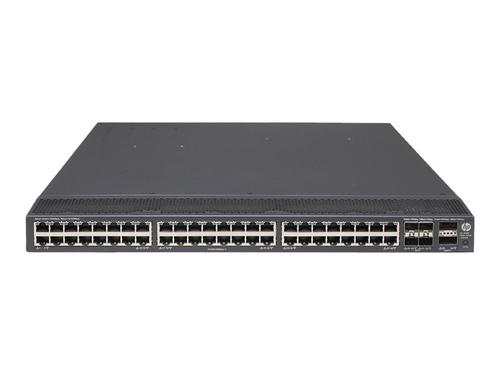

HPE 5900AF-48G-4XG-2QSFP F-B Bundle
HP 5900AF-48G-4XG-2QSFP F-B Bundle
- Brand
- Hewlett Packard Enterprise
- Product code
- JG848A
- SKU
- RII3AFAXV82OE
- EAN/GTIN
- 887758997239
€62876.71
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Packaged Quantity | 4 (specifications are for single item) |
| Device type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ + 2 x 40 Gigabit QSFP+ |
| Performance | Throughput (64-byte packet size):250 Mpps Routing/switching capacity:336 Gbps |
| Capacity | IPv4 routing table entries:16000 IPv6 routing table entries:8000 Virtual interfaces (VLANs):4096 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 10000 bytes |
| Routing Protocol | OSPF, EGP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMP, VRRP, PIM-SM, PIM-DM, OSPFv3, static IPv6 routing, ECMP, RIPng, IS-ISv6, BGP-4+, MPLS, Bidirectional Forwarding Detection (BFD) |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Encryption Algorithm | MD5 |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, SNTP support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Data Center Bridging Exchange (DCBX) support, event log, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, Device Link Detection Protocol (DLDP) support, IPv4 support, Deficit Weighted Round Robin (DWRR), DHCP relay, Port Security, Data Center Bridging (DCB), fan tray, role based access control, dual firmware images, Strict Priority Queuing (SPQ), loop prevention, NTP time synchronisation, redundant hot swappable fans, 9MB packet buffer, Edge Virtual Bridging (EVB), FCoE stacking, Intelligent Resilient Framework Technology (IRF), Type of Service (ToS), cut-through, DiffServ Code Point (DSCP) support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz |
| RAM | 2 GB SDRAM |
| Flash memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 4 x 10GBase-X SFP+ 2 x 40Gbit LAN QSFP+ 1 x console RJ-45 management 1 x USB 2.0 Type A 1 x RJ-45 management |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 650 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 260 Watt |
| Miscellaneous | |
| Included Accessories | 8 x SFP+ transceivers, 2 x HP Front to Back Airflow Fan Tray |
| Compliant Standards | GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, ANATEL, FDA, EN 60825-1, Directive 2004/108/EC, ANSI C63.4-2003, EN 60825-2, EN 61000-3-2:2006, VCCI Class A, EN 61000-3-3:1995+A1:2001+A2:2005, EN55024:1998 + A1 + A2, AS/NZS CISPR 22, EN 60950-1/A11:2009, EN 300 386 V1.3.3, CAN/CSA-C22.2 No. 60950-1 |
| Dimensions & Weight | |
| Width | 43.99 cm |
| Depth | 46 cm |
| Height | 4.37 cm |
| Weight | 13 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time:10 days |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
