HPE 544M

644161-B22 - 887758075821

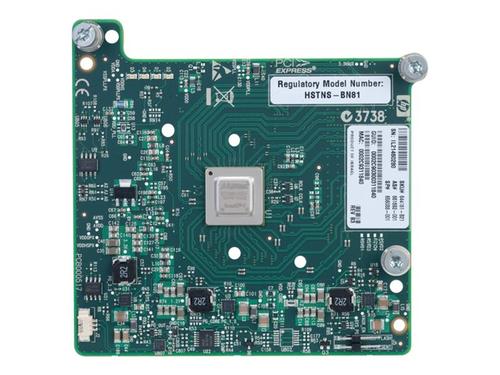

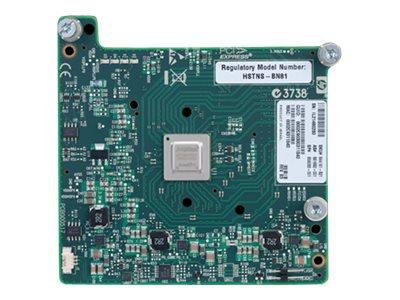

HP InfiniBand FDR/EN 10/40Gb Dual Port 544M Adapter

Next Generation InfiniBand/Ethernet Adapters for HPE ProLiant Servers
Performance driven ConnectX-3 Pro architecture for InfiniBand bandwidth up to 56 Gb/s (FDR), Ethernet bandwidth up 40 Gb/s, and reduced application latency for either InfiniBand or Ethernet operation
PCI Express 3.0
Maximum effective network bandwidth through hardware-based traffic segregation (QoS) and congestion control
Low latency 10, 20, or 40 Gb/s Ethernet for FSI environments
Low power requirements, low cost per Gb/s bandwidth

€1566.0 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

General

Device type Network adapter - 2 ports

Interface (Bus) Type PCI Express 3.0 x8

Networking

Connectivity technology Wired

Data Link Protocol 10 Gigabit Ethernet, InfiniBand, 40 Gigabit Ethernet

Data transfer rate 56 Gbps

Features InfiniBand FDR Link support

Miscellaneous

Compliant Standards CISPR 22 Class A, VCCI Class A ITE, ICES-003 Class A, FCC CFR47 Part 15, RoHS

Dimensions & Weight

Depth 9.9 cm

Height 8.9 cm

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 55 °C

Humidity Range Operating 5 - 85% (non-condensing)

Compatibility Information

Designed For HPE ProLiant BL660c Gen8 Mellanox SX1018HP Ethernet Switch for c-Class BladeSystem
