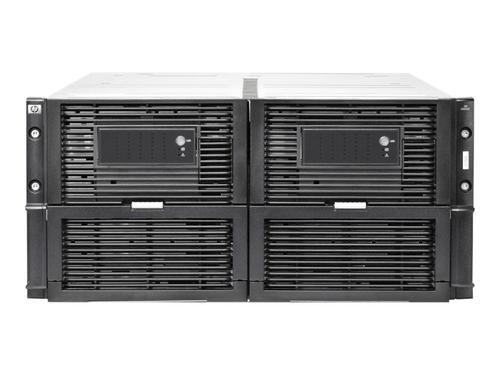

HPE Disk Enclosure D6000

QQ700A - 0887111439659

HP D6000 3TB 6G SAS LFF MDL 210TB Bundle

Brand: Hewlett Packard Enterprise
Product code: QQ700A
SKU: THUE3V67JZCGZ
EAN/GTIN: 0887111439659

Supports seventy 3.5" LFF universal hot pluggable SAS or SAS (midline) MDL drives
Two pull-out drive drawers support hot plug large form factor dual-ported SAS or SAS MDL drives in just 5 U of rack space

€69763.19 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Description

High density, low cost SAS storage for BladeSystem and ProLiant DL/ML servers

Two pull-out drive drawers support hot plug large form factor dual-ported SAS or SAS MDL drives in just 5 U of rack space. Each pull-out drive drawer is supported by a redundant set of hot plug power supplies and redundant hot plug fans. Straight forward SAS architecture provides zoned direct attach storage for BladeSystem servers.

Build BladeSystem server storage on the fly

D6000 drive bays are assigned or 'zoned' to individual blade bays using SAS 2.0 zoning capabilities. Use the Virtual SAS Manager (VSM) in the 6 Gbps SAS BL switch to dynamically assign up to 100 drives to specific BladeSystem servers, without complex configuration or re-cabling. Drives zoned to each server appear as local storage to that server. This allows complete flexibility to reconfigure quickly and easily without moving cables. With zoned direct attached storage capabilities; server administrators can build local storage on the fly according to their configuration requirements.

Specifications

General

Device type Storage enclosure

Enclosure Type Rack-mountable - 5U

Chassis

Installed Devices / Modules Qty 70

Supported Devices / Modules Qty 70

Supported Drives SAS-2

Processor

CPU No CPU

Hard drive

Type HDD - hot-swap

Capacity 70 x 3 TB

Interface type SAS 6Gb/s

Spindle Speed 7200 rpm

Expansion / Connectivity

Expansion Bays 70 (total) / 0 (free) x hot-swap - 3.5" LFF

Interfaces 8 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)

System requirements

OS Required Microsoft Windows Server 2003, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESX 4.1, VMware ESX 5.0

Power

Power Device 4 x internal power supply - hot-plug

Max Supported Qty 4

Power Redundancy Yes

Power Redundancy Scheme N+2

Voltage Required AC 120/230 V - 50/60 Hz

Power Provided 1200 Watt

Dimensions & Weight

Width 44.7 cm

Depth 89.12 cm

Height 22.1 cm

Weight 72.58 kg

Manufacturer Warranty

Service & Support Limited warranty - parts - 3 years

Environmental Parameters

Min Operating Temperature 10 °C

Max Operating Temperature 35 °C

Humidity Range Operating 10 - 90% (non-condensing)

Compatibility Information

Designed For HPE ProLiant BL420c Gen8, BL460c Gen8, BL465c Gen8, BL660c Gen8, BL660c Gen8 Performance
