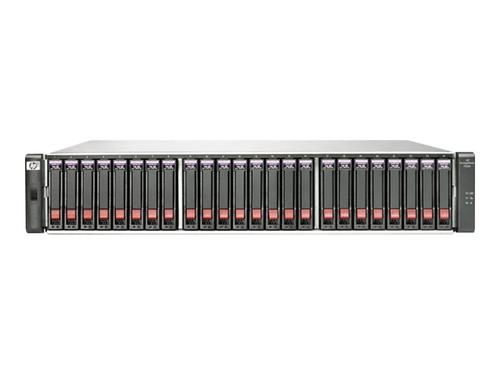

HPE P2000 G3 iSCSI Dual Controller

General

Device type Hard drive array

Enclosure Type Rack-mountable - 2U

Chassis

Installed Devices / Modules Qty 12

Supported Devices / Modules Qty 24

Supported Drives SATA-300 / SAS-2

Storage

Total Array Capacity 7.2 TB

HDD Array External Interface iSCSI

Maximum LUNs 512

Storage Controller

Type RAID (iSCSI)

Installed Qty 2

Interface type SATA 3Gb/s / SAS 6Gb/s

Data transfer rate 600 Mbps

Cache / Buffer Size (Max) 2 GB

RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50

Storage Controller (2nd)

Installed Qty 2

Hard drive

Type No HDD

Capacity 12 x 600 GB

Interface type SAS 6Gb/s

Spindle Speed 10000 rpm

Expansion / Connectivity

Expansion Bays 24 (total) / 12 (free) - 2.5" SFF

Interfaces 8 x Ethernet 1000Base-T - RJ-45 2 x management - mini-USB Type B 2 x management - RJ-45 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)

System requirements

OS Required HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003, HP OpenVMS, Microsoft Windows Server 2003 R2 Enterprise Edition SP2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition

Miscellaneous

Compliant Standards CISPR 22 Class A, CISPR 24, EN55022, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, RoHS, FCC CFR47

Power

Power Device 2 x internal power supply - hot-plug

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V - 50 - 60 Hz

Dimensions & Weight

Width 44.7 cm

Depth 51.1 cm

Height 8.9 cm

Weight 14.7 kg

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)
