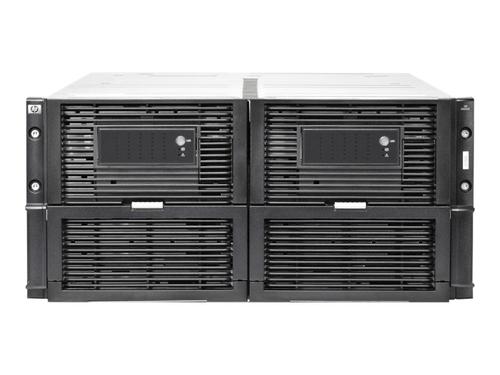

HP D6000 2TB 6G SAS LFF MDL 70TB Bundle
- Brand
- Hewlett Packard Enterprise
- Product code
- QQ697A
- SKU
- 42SDT644STWSZ
- EAN/GTIN
- 886111629428
- Supports seventy 3.5" LFF universal hot pluggable SAS or SAS (midline) MDL drives
- Two pull-out drive drawers support hot plug large form factor dual-ported SAS or SAS MDL drives in just 5 U of rack space
Description
High density, low cost SAS storage for BladeSystem and ProLiant DL/ML servers
Two pull-out drive drawers support hot plug large form factor dual-ported SAS or SAS MDL drives in just 5 U of rack space. Each pull-out drive drawer is supported by a redundant set of hot plug power supplies and redundant hot plug fans. Straight forward SAS architecture provides zoned direct attach storage for BladeSystem servers.
Build BladeSystem server storage on the fly
D6000 drive bays are assigned or 'zoned' to individual blade bays using SAS 2.0 zoning capabilities. Use the Virtual SAS Manager (VSM) in the 6 Gbps SAS BL switch to dynamically assign up to 100 drives to specific BladeSystem servers, without complex configuration or re-cabling. Drives zoned to each server appear as local storage to that server. This allows complete flexibility to reconfigure quickly and easily without moving cables. With zoned direct attached storage capabilities; server administrators can build local storage on the fly according to their configuration requirements.
| General | |
|---|---|
| Device type | Storage enclosure |
| Enclosure Type | Rack-mountable - 5U |
| Chassis | |
| Installed Devices / Modules Qty | 35 |
| Supported Devices / Modules Qty | 70 |
| Supported Drives | SAS-2 |
| Processor | |
| CPU | No CPU |
| Hard drive | |
| Type | HDD - hot-swap |
| Capacity | 35 x 2 TB |
| Interface type | SAS 6Gb/s |
| Spindle Speed | 7200 rpm |
| Expansion / Connectivity | |
| Expansion Bays | 70 (total) / 35 (free) x hot-swap - 3.5" LFF |
| Interfaces | 8 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) |
| System requirements | |
| OS Required | Microsoft Windows Server 2003, Microsoft Windows Server 2003 R2, Red Hat Enterprise Linux 5, Red Hat Enterprise Linux 6, SuSE Linux Enterprise Server 10 SP3, SuSE Linux Enterprise Server 11 SP1, VMware ESX 4.1, VMware ESX 5.0 |
| Power | |
| Power Device | 4 x internal power supply - hot-plug |
| Max Supported Qty | 4 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | N+2 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Power Provided | 1200 Watt |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 89.12 cm |
| Height | 22.1 cm |
| Weight | 72.58 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
