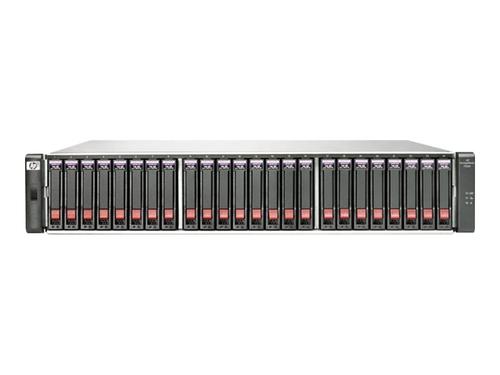

HPE P2000 G3 iSCSI Dual Controller

General

Device type Hard drive array

Enclosure Type Rack-mountable - 2U

Chassis

Installed Devices / Modules Qty 12

Supported Devices / Modules Qty 24

Supported Drives SATA-300 / SAS-2

Storage

Total Array Capacity 3.6 TB

HDD Array External Interface iSCSI (1 GbE)

Maximum LUNs 512

Storage Controller

Type RAID (iSCSI)

Installed Qty 2

Interface type SATA 3Gb/s / SAS 6Gb/s

Data transfer rate 600 Mbps

Cache / Buffer Size (Max) 4 GB

RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50

Storage Controller (2nd)

Installed Qty 2

Hard drive

Capacity 12 x 300 GB

Interface type SAS 6Gb/s

Spindle Speed 10000 rpm

Expansion / Connectivity

Expansion Bays 24 (total) / 12 (free) - 2.5" SFF

Interfaces 8 x Ethernet 1000Base-T - RJ-45 2 x management - mini-USB Type B 2 x management - RJ-45 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)

System requirements

OS Required SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Microsoft Windows Server 2003 R2 SP2, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2008 R2 SP2, Microsoft Windows Server 2008 R2 SP1

Miscellaneous

Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, CAN/CSA C22.2 No. 60950-1-03

Power

Power Device 2 x internal power supply - hot-plug

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V - 50/60 Hz

Dimensions & Weight

Width 44.7 cm

Depth 51.51 cm

Height 8.9 cm

Weight 14.7 kg

Manufacturer Warranty

Service & Support Limited warranty - parts - 3 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)
