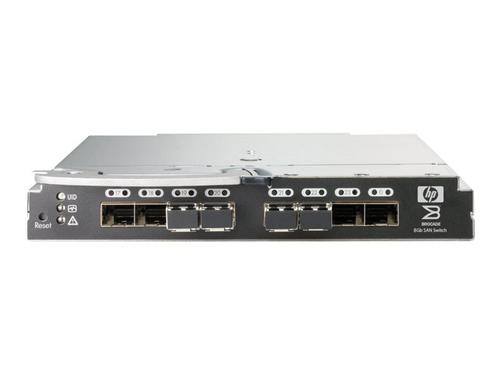

Brocade 8Gb SAN Switch 8/24c Power Pack+ - Switch - Managed - 16 x 8Gb Fibre Channel (backplane) + 8 x 8Gb Fibre Channel SFP+ - plug-in module
- Brand
- Hewlett Packard Enterprise
- Product code
- AJ822B
- SKU
- 1XHZPV9I2H52D
- Integrated SAN connectivity
- Next generation 8 Gbps storage networking
- Non-blocking architecture
- ISL trunking performance enhancements
- Adaptive Networking services
- Access Gateway mode
- Broad range of management tools
Description
Integrated SAN connectivity
It enables data center consolidation with HPE BladeSystem c-Class through a state-of-the-art zero-footprint design while lowering cost through shared power and cooling, fewer cables and SFPs, and a reduction in space.
Next generation 8 Gbps storage networking
Enables support of virtualized environments and other emerging technologies through high-speed technology that doubles the performance of the storage network. Both internal and external facing ports auto-sense lower bandwidth components for flexibility and investment protection.
Non-blocking architecture
Includes connection speed support for all ports to provide a high-performance system with aggregate bandwidth of up to 384 Gbps.
ISL Trunking performance enhancements
Now providing support for up to a single trunk made up of all eight SAN ports for a total of up to 64 Gbps balanced throughput. Trunking of the SAN-facing ports with external Brocade or HPE StorageWorks B-series switches provides a high-bandwidth solution while lowering costs through fewer SFPs and cables.
Adaptive networking services
Enables organizations to better manage data flows and meet service level agreements while maintaining optimized application performance in virtual environments with Adaptive Networking services, including Adaptive Fabric Quality of Service, Traffic Isolation, and Ingress Rate Limiting.
Access Gateway mode
Employs N Port ID Virtualization (NPIV), an ANSI T11 standard, to enable interoperability with other SAN fabrics and eliminate domain considerations while improving SAN scalability.
Broad range of management tools and SMI-s conformance
Integrates with HPE Onboard Administrator for BladeSystem, HPE Systems Insight Manager, and HPE Storage Essentials and leverages HPE B-series management and monitoring tools. An SMI-s API enables the use of industry standard interfaces to integrate management with other applications.
| General | |
|---|---|
| Device type | Switch - 24 ports - Managed |
| Enclosure Type | Plug-in module |
| Subtype | Fibre Channel |
| Ports | 16 x 8Gb Fibre Channel (backplane) + 8 x 8Gb Fibre Channel SFP+ |
| Fibre Channel | FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-4, FC-PI, FC-PLDA, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-BB-2, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FC-LS, FC-MI-2, FC-PI-4 |
| Remote Management Protocol | SNMP, Telnet, HTTP, SMI-S |
| Features | ARP support, full duplex mode |
| Expansion / Connectivity | |
| Interfaces | 16 x 8Gb Fibre Channel 8Gb Fibre Channel - backplane 4 x 8Gb Fibre Channel SFP+ - SFP+ 4 x 8Gb Fibre Channel |
| Miscellaneous | |
| Included Accessories | 4 x 8 Gbps Short Wave Fibre Channel SFP+ |
| Compliant Standards | FCC Class A certified, TUV, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 60950, NEMKO, VCCI Class A ITE, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZ 3548 Class A, EMC, FCC CFR47 Part 15 B, RoHS2 |
| Software / System Requirements | |
| Software included | Brocade Fabric Watch, Brocade Advanced Performance Monitoring, Brocade Extended Fabrics, Brocade ISL Trunking, Brocade Adaptive Networking |
| Dimensions & Weight | |
| Width | 19.4 cm |
| Depth | 27.9 cm |
| Height | 2.87 cm |
| Weight | 1.32 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 1 year - on-site |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -30 °C |
| Max Storage Temperature | 60 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
