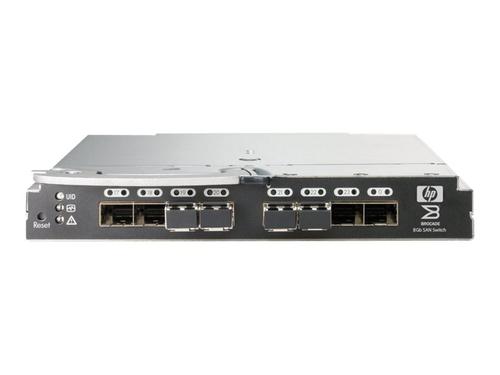

Brocade 8/12c SAN Switch for BladeSystem c-Class - Switch - Managed - 12 x 8Gb Fibre Channel - plug-in module
- Brand
- Hewlett Packard Enterprise
- Product code
- AJ820B
- SKU
- 8FOTGK0FJ3B0I
- Integrated SAN connectivity
- 8 Gbps storage networking
- Non-blocking architecture
- ISL trunking performance enhancements
- Access Gateway mode
Description
Integrated SAN connectivity
Enables data center consolidation with HPE BladeSystem c-Class through a state-of-the-art zero footprint design while lowering cost through shared power and cooling, fewer cables and SFPs, and a reduction in space.
8 Gbps storage networking
Enables support of virtualized environments and other emerging technologies through high-speed technology that doubles the performance of the storage network. Both internal and external facing ports auto-sense lower bandwidth components for flexibility and investment protection.
ISL trunking performance enhancements
Now providing support for up to a single trunk made up of all eight SAN ports for a total of up to 64 Gbps balanced throughput. Trunking of the SAN-facing ports with external Brocade or HPE B-series switches provides a high-bandwidth solution while lowering costs through fewer SFPs and cables.
Access Gateway mode
Employs N Port ID Virtualization (NPIV), an ANSI T11 standard, to enable interoperability with other SAN fabrics and eliminate domain considerations while improving SAN scalability.
| General | |
|---|---|
| Device type | Switch - 12 ports - Managed |
| Enclosure Type | Plug-in module |
| Subtype | Fibre Channel |
| Ports | 12 x 8Gb Fibre Channel |
| Fibre Channel | FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-4, FC-PI, FC-PLDA, FC-SB-3, FC-SW-3, FC-Tape, FC-VI, FC-BB-2, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FC-LS, FC-MI-2, FC-PI-4 |
| Remote Management Protocol | SNMP, Telnet, HTTP, SMI-S |
| Features | ARP support, manageable |
| Expansion / Connectivity | |
| Interfaces | 2 x 8Gb Fibre Channel (SW) x 2 12 x 8Gb Fibre Channel - backplane 6 x 8Gb Fibre Channel - SFP+ |
| Installed Modules Qty (Max) | 2 (installed) / 8 (max) |
| Miscellaneous | |
| Included Accessories | 2 x 8 Gbps Short Wave Fibre Channel SFP+ |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, VCCI Class A ITE, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, AS/NZ 3548 Class A, EMC, FCC CFR47 Part 15 B |
| Software / System Requirements | |
| Software included | Brocade Advanced Zoning, Brocade Fabric OS |
| Dimensions & Weight | |
| Width | 27.9 cm |
| Depth | 19.4 cm |
| Height | 2.9 cm |
| Weight | 1.32 kg |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -30 °C |
| Max Storage Temperature | 60 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
