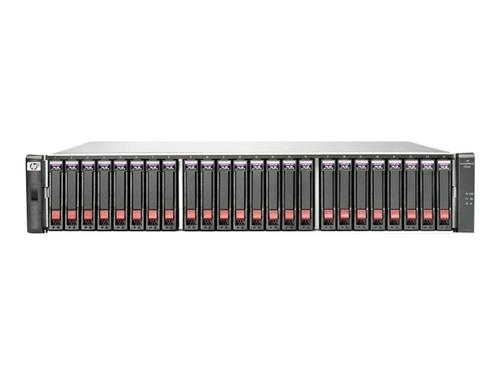

HP P2000 G3 10GbE iSCSI MSA Dual Controller SFF Array System
- Brand
- Hewlett Packard Enterprise
- Product code
- AW597B
- SKU
- D1J4UMFAI4BKQ
- Easily managed, highly affordable, highly efficient and flexible storage consolidation
- Start small and grow in number of supported servers and total capacity - adaptable to changing needs
- Comprehensive data protection in an easily administered SAN environment
Description
Start small and grow in number of supported servers and total capacity - adaptable to changing needs
The P2000 G3 MSA arrays can support 5 SFF enclosures and a maximum of 149 drives. Powerful controllers and 2 GB of read/write cache each provide support for up to 64 hosts. 10 GbE iSCSI technology means that the users will have fast, reliable, and affordable access to their data. With 512 LUNs and greater than 40 TB LUN size depending on the RAID chosen, the P2000 G3 MSA arrays have more than sufficient LUN flexibility for a wide variety of configuration choices.
Easily managed, highly affordable, highly efficient and flexible storage consolidation
The HPE P2000 G3 MSA Array Systems deliver low cost, consolidated storage array solutions to meet departmental and small to medium businesses requirements with 10 GbE iSCSI systems accommodating SFF SAS, SAS MDL, and SATA MDL drives. It offers dual controllers for higher data protection. The HPE P2000 G3 MSA Array Systems offer a choice of drives:high performance enterprise class dual-ported SAS drives and low cost, high capacity SAS MDL, or archival class SATA MDL drives. The array head comes with 24 drive bays able to simultaneously accommodate all three drive types. The P2000 G3 MSA comes standard with 64 snapshot and Volume Copy cloning capability enabled.
Comprehensive data protection in an easily administered san environment
Reduce risk of IT failure with dual active/active controllers, dual-ported drives, and redundant hardware components. For increased data protection the P2000 G3 MSA comes standard with 64 Snapshot and Volume Copy software, giving space-efficient, copy-on-write snapshots and clones. Reduced time to operation with easy and secure deployment. Reduced risk from operator errors, resulting in less downtime and data loss, while increasing customer satisfaction. Supports customer replaceable hot-plug components such as drives, disk enclosures, controllers, fans and power supplies.
General | |
---|---|
Device type | Hard drive array |
Enclosure Type | Rack-mountable - 2U |
Chassis | |
Installed Devices / Modules Qty | 0 |
Supported Devices / Modules Qty | 24 |
Supported Drives | SATA-300 / SAS-2 |
Storage | |
HDD Array External Interface | iSCSI |
Maximum LUNs | 512 |
Storage Controller | |
Type | RAID (iSCSI) |
Installed Qty | 2 |
Interface type | SATA 3Gb/s / SAS 6Gb/s |
Data transfer rate | 600 Mbps |
Cache / Buffer Size (Max) | 2 GB |
RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
Storage Controller (2nd) | |
Installed Qty | 2 |
Hard drive | |
Type | HDD - hot-swap |
Capacity | 0 |
Expansion / Connectivity | |
Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" SFF |
Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 2 x management 2 x management - RJ-45 4 x Ethernet 10Gb |
System requirements | |
OS Required | Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 R2 SP2, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2008 SP1, Microsoft Windows Server 2003 SP2 |
Miscellaneous | |
Compliant Standards | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, RoHS, EN55024 Class A |
Power | |
Power Device | 2 x internal power supply - hot-plug |
Max Supported Qty | 2 |
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Voltage Required | AC 120/230 V - 50/60 Hz |
Dimensions & Weight | |
Width | 44.7 cm |
Depth | 51.51 cm |
Height | 8.9 cm |
Environmental Parameters | |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Sound Emission | 55 dB |
