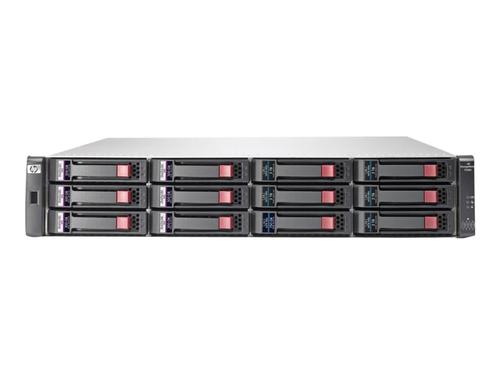

HPE Modular Smart Array P2000 G3 10GbE iSCSI Dual Controller LFF Array System

General

Device type Hard drive array

Enclosure Type Rack-mountable - 2U

Chassis

Installed Devices / Modules Qty 0

Supported Devices / Modules Qty 12

Supported Drives SATA-300 / SAS-2

Storage

HDD Array External Interface iSCSI

Maximum LUNs 512

Storage Controller

Type RAID (iSCSI)

Installed Qty 2

Interface type SATA 3Gb/s / SAS 6Gb/s

Data transfer rate 600 Mbps

Cache / Buffer Size (Max) 2 GB

RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50

Storage Controller (2nd)

Installed Qty 2

Expansion / Connectivity

Expansion Bays 12 (total) / 12 (free) - 3.5" LFF

Interfaces 2 x management - mini-USB Type B 2 x management - RJ-45 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 4 x Ethernet 10Gb

System requirements

OS Required Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 R2 SP2, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008 SP2, Microsoft Windows Server 2008 SP1, Microsoft Windows Server 2003 SP2

Miscellaneous

Compliant Standards VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, EN55022 Class A, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, EN55024 Class A, AS/NZS, CAN/CSA C22.2 No. 60950-1-03

Power

Power Device 2 x internal power supply - hot-plug

Max Supported Qty 2

Power Redundancy Yes

Power Redundancy Scheme 1+1

Voltage Required AC 120/230 V - 50/60 Hz

Dimensions & Weight

Width 44.7 cm

Depth 55.1 cm

Height 8.9 cm

Weight 19.2 kg

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 90% (non-condensing)

Sound Emission 55 dB
