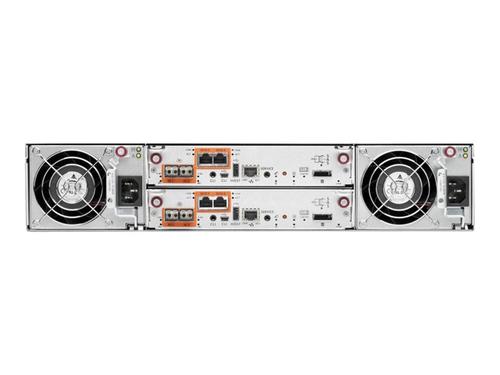

HP P2000 G3 MSA FC/iSCSI Dual Combo Controller SFF Array
- Brand
- Hewlett Packard Enterprise
- Product code
- AW568B
- SKU
- GQO4459SO2A1Q
- Easily managed, highly affordable, highly efficient and flexible storage consolidation
- Start small and grow in number of supported servers and total capacity - adaptable to changing needs
- Comprehensive data protection in an easily administered SAN environment
Description
Easily managed, highly affordable, highly efficient and flexible storage consolidation
The HPE P2000 G3 MSA Array System delivers low cost, consolidated storage array solutions to meet departmental and small to medium businesses requirements with iSCSI system accommodating SFF drives. The P2000 G3 MSA comes standard with 64 snapshot and volume copy cloning capability enabled.
Start small and grow in number of supported servers and total capacity
iSCSI technology means that the users will have fast, reliable, and affordable access to their data.
Comprehensive data protection in an easily administered SAN environment
Reduce risk of IT failure with dual active/active controllers, dual-ported drives, and redundant hardware components. Reduced time to operation with easy and secure deployment. Reduced risk from operator errors, resulting in less downtime and data loss, while increasing customer satisfaction.
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SATA-300 / SAS-2 |
| Storage | |
| HDD Array External Interface | iSCSI, 8Gb Fibre Channel |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | RAID (8Gb Fibre Channel / iSCSI) |
| Installed Qty | 2 |
| Interface type | SATA 3Gb/s / SAS 6Gb/s |
| Data transfer rate | 600 Mbps |
| Cache / Buffer Size (Max) | 2 GB |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Hard drive | |
| Type | HDD - hot-swap |
| Capacity | 0 |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" SFF |
| Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 2 x management 2 x management - RJ-45 4 x Ethernet 1000Base-T 4 x 8Gb Fibre Channel |
| System requirements | |
| OS Required | Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 SP1, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 R2 x64 Edition, VMware ESX |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, RoHS, EN55024 Class A |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 51.51 cm |
| Height | 8.9 cm |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dB |
