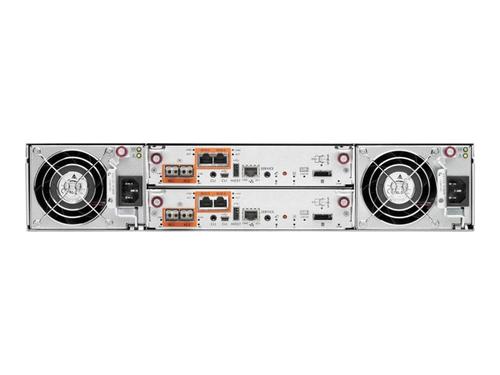

HP P2000 G3 MSA FC/iSCSI Dual Combo Controller LFF Array
- Brand
- Hewlett Packard Enterprise
- Product code
- AW567B
- SKU
- 9GCB9W4CBR3B1
- Easily managed, highly affordable, highly efficient and flexible storage consolidation
- Start small and grow in number of supported servers and total capacity
- Comprehensive data protection in an easily administered SAN environment
Description
Easily managed, highly affordable, highly efficient and flexible storage consolidation
The HPE P2000 G3 MSA Array System delivers low cost, consolidated storage array solutions to meet departmental and small to medium businesses requirements. The P2000 G3 MSA offers single controller models for low initial investment, or dual controllers for higher data protection. The FC/iSCSI Combo controller allows sharing of resources between different departments with the most cost-effective protocol. A wide choice of drive types means a high ROI.
Start small and grow in number of supported servers and total capacity
iSCSI technology means that the users will have fast, reliable, and affordable access to their data. The P2000 G3 MSA arrays have more than sufficient LUN flexibility for a wide variety of configuration choices.
Comprehensive data protection in an easily administered SAN environment
Reduce risk of IT failure with dual active/active controllers, dual-ported drives, and redundant hardware components. Reduced time to operation with easy and secure deployment. Reduced risk from operator errors, resulting in less downtime and data loss, while increasing customer satisfaction.
| General | |
|---|---|
| Device type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 0 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SATA-300 / SAS-2 |
| Storage | |
| HDD Array External Interface | iSCSI, 8Gb Fibre Channel |
| Maximum LUNs | 512 |
| Storage Controller | |
| Type | RAID (8Gb Fibre Channel / iSCSI) |
| Installed Qty | 2 |
| Interface type | SATA 3Gb/s / SAS 6Gb/s |
| Data transfer rate | 600 Mbps |
| Cache / Buffer Size (Max) | 2 GB |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
| Storage Controller (2nd) | |
| Installed Qty | 2 |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) - 3.5" LFF |
| Interfaces | 2 x management - mini-USB Type B 2 x management - RJ-45 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 4 x Ethernet 1000Base-T - RJ-45 4 x 8Gb Fibre Channel - SFP+ |
| System requirements | |
| OS Required | HP-UX, SuSe Linux, Apple MacOS X, SUSE Linux Enterprise Server, SunSoft Solaris x86 10, Microsoft Windows Server 2003 SP1, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits) |
| Miscellaneous | |
| Compliant Standards | VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, AS/NZS, CAN/CSA C22.2 No. 60950-1-03, EN 55022 Class A, EN 55024 Class A |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V - 50/60 Hz |
| Dimensions & Weight | |
| Width | 44.7 cm |
| Depth | 55.1 cm |
| Height | 8.9 cm |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Sound Emission | 55 dB |
