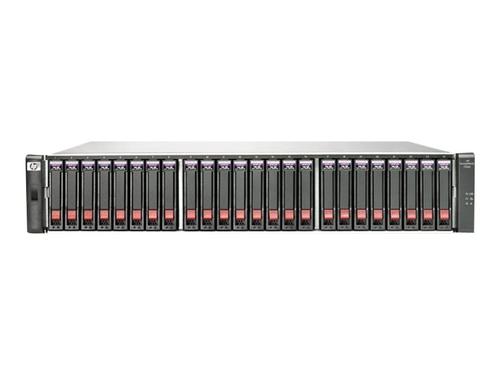

HPE Modular Smart Array P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit
AP848B - 887111210456
HP P2000 G3 FC MSA Dual Controller Virtualization SAN Starter Kit
- Brand
- Hewlett Packard Enterprise
- Product code
- AP848B
- SKU
- UZNP4WGTH3EWD
- EAN/GTIN
- 887111210456
- Easily managed, highly affordable, highly efficient and flexible storage consolidation
- Start small and grow in number of supported servers and total capacity
- Comprehensive data protection in an easily administered SAN environment
€19090.4
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Easily managed, highly affordable, highly efficient and flexible storage consolidation
The HPE P2000 G3 MSA Array Systems deliver low cost, consolidated storage array solutions to meet departmental and small to medium businesses requirements with 8 Gb Fiber Channel, Combo FC/iSCSI, 6 Gb SAS, and 1 Gb or 10 GbE iSCSI systems accommodating LFF and SFF SAS, SAS MDL, and SATA MDL drives. The P2000 G3 MSA offers single controller models for low initial investment, or dual controllers for higher data protection. The FC/iSCSI Combo controller allows sharing of resources between different departments with the most cost-effective protocol. A wide choice of drive types means a high ROI.Start small and grow in number of supported servers and total capacity
The P2000 G3 MSA arrays can support 7 LFF enclosures and 96 drives or 5 SFF enclosures and a maximum of 149 drives. Single or dual controllers accommodate any budget. Powerful controllers (FC, FC/iSCSI, SAS, 10 GbE and 1 Gb iSCSI) and 2 GB of read/write cache each provides support for up to 64 hosts. 8 Gb Fiber Channel, 6 Gb SAS, and 10 GbE and 1 Gb iSCSI technology means that the users will have fast, reliable, and affordable access to their data.Comprehensive data protection in an easily administered SAN environment
Reduce risk of IT failure with dual active/active controllers, dual-ported drives, and redundant hardware components. For increased data protection the P2000 G3 MSA comes standard with 64 snapshot and Volume Copy software, giving space-efficient, copy-on-write snapshots and clones. Reduced risk from operator errors, resulting in less downtime and data loss, while increasing customer satisfaction. The P2000 G3 FC, FC/iSCSI Combo, SAS, or iSCSI controllers support data-in-place upgrades, protecting the user's investment in JBODs and drives and giving greater performance, functionality.Specifications
General
Device type
Hard drive array
Enclosure Type
Rack-mountable - 2U
Chassis
Installed Devices / Modules Qty
0
Supported Devices / Modules Qty
24
Supported Drives
SATA-300 / SAS-2
Storage
HDD Array External Interface
8Gb Fibre Channel
Maximum LUNs
512
Storage Controller
Type
RAID (8Gb Fibre Channel)
Installed Qty
2
Interface type
SATA 3Gb/s / SAS 6Gb/s
Data transfer rate
600 Mbps
Cache / Buffer Size (Max)
4 GB
RAID Level
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50
Storage Controller (2nd)
Installed Qty
2
Hard drive
Interface type
SATA 3Gb/s / SAS 6Gb/s
Expansion / Connectivity
Expansion Bays
24 (total) / 24 (free) - 2.5" SFF
Interfaces
4 x 8Gb Fibre Channel 2 x management - mini-USB Type B 2 x management - RJ-45
System requirements
OS Required
HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003, HP OpenVMS, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition, Oracle Solaris 10
Miscellaneous
Compliant Standards
FCC Class A certified, VCCI, CISPR 22 Class A, CISPR 24, GS, EN55022 Class A, CCC, FCC Part 15, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, RoHS, EN55024 Class A
Included Accessories
6x 8Gb single-port HBA, 2x 16-port 8Gb switch
Power
Power Device
2 x internal power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 120/230 V - 50/60 Hz
Dimensions & Weight
Width
44.7 cm
Depth
51.51 cm
Height
8.9 cm
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
