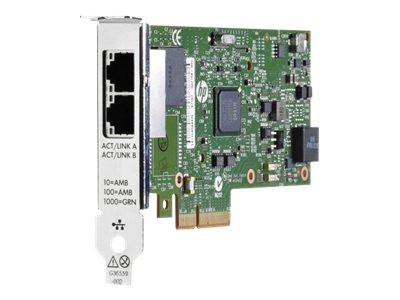

HPE 361T
HP Ethernet 1Gb 2P 361T Adptr
- Brand
- Hewlett Packard Enterprise
- Product code
- 652497-B21
- SKU
- RGU2MN219JLFM
- EAN/GTIN
- 886111577620
- Dual port bandwidth, Gigabit PCI Express 2.1 NIC, with full height or low profile bracket
- Fully integrated (bridgeless) Intel Ethernet I350 Controller, optimized for the Integrated I/O and Data Direct I/O technologies
- Tested by HPE and Intel to ensure compatibility with HPE ProLiant Gen8 servers
- Supports the IEEE 1588 Precision Time Stamping protocol and 802.1AS implementation
- Supports latest virtualization features including VMware NetQueue and Microsoft VMQ, plus power management technologies such as IEEE 802.3az and DMAC
€707.72
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.0 x4 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | |
| Ports | Gigabit Ethernet x 2 |
| Connectivity technology | Wired |
| Cabling type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data transfer rate | 1 Gbps |
| Remote Management Protocol | SNMP |
| Status Indicators | Port transmission speed, link/activity |
| Features | Auto-negotiation, WOL, NFT, Jumbo Frames support, PXE support, LSO, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az |
| Processor / Memory | |
| Processor | 1 x Intel I350 |
| Expansion / Connectivity | |
| Interfaces | 2 x 1000Base-T - RJ-45 |
| Compatible Slots | 1 x PCI Express 2.0 x4 - low-profile |
| Miscellaneous | |
| Included Accessories | Low-profile bracket |
| Compliant Standards | FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A |
| Software / System Requirements | |
| OS Required | SUSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0 |
| Dimensions & Weight | |
| Depth | 13.5 cm |
| Height | 6.4 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Apollo 4200 Gen10 HPE Nimble Storage dHCI Large Solution with HPE ProLiant DL380 Gen10, Medium Solution with HPE ProLiant DL360 Gen10, Small Solution with HPE ProLiant DL360 Gen10 HPE ProLiant DL180 Gen10, DL180 Gen10 Entry, DL180 Gen10 SMB, DL20 Gen10, DL20 Gen10 Entry, DL20 Gen10 Performance, DL20 Gen10 solution, DL20 Gen9 Solution, DL325 Gen10 Base, DL325 Gen10 Solution, DL360 Gen10, DL360 Gen10 All Flash Server for Weka, DL360 Gen10 Base, DL360 Gen10 Compute Server for Cohesity DataPlatform, DL360 Gen10 Entry, DL360 Gen10 High Performance, DL360 Gen10 Low, DL360 Gen10 Network Choice, DL360 Gen10 Performance, DL360 Gen10 Performance for Cohesity DataPlatform, DL360 Gen10 SMB, DL360 Gen10 SMB Network Choice, DL360 Gen10 Solution, DL380 Gen10, DL380 Gen10 All Flash Server for Datera, DL380 Gen10 Base, DL380 Gen10 Entry, DL380 Gen10 Entry SMB, DL380 Gen10 for Cohesity DataPlatform, DL380 Gen10 for SAP HANA Compute Block, DL380 Gen10 High Performance, DL380 Gen10 Hybrid Server for Datera, DL380 Gen10 Network Choice, DL380 Gen10 Network Choice for CTERA, DL380 Gen10 NVMe All Flash Server for Datera, DL380 Gen10 Performance, DL380 Gen10 Server for CTERA, DL380 Gen10 SMB, DL380 Gen10 SMB Networking Choice, DL380 Gen10 Solution, DL388 Gen10 Network Choice, DL388p Gen8 Base, DL560 Gen10, DL560 Gen10 Base, DL560 Gen10 Entry, DL560 Gen10 for SAP HANA Compute Block, DL560 Gen10 Performance, DL580 Gen10, DL580 Gen10 Base, DL580 Gen10 Entry, DL580 Gen10 Performance, ML110 Gen10, ML110 Gen10 Entry, ML110 Gen10 Performance, ML110 Gen10 Solution, ML30 Gen10, ML30 Gen10 Entry, ML30 Gen10 Performance, ML30 Gen10 Solution, ML30 Gen9 Entry, ML30 Gen9 Solution, ML350 Gen10, ML350 Gen10 Base, ML350 Gen10 Entry, ML350 Gen10 High Performance, ML350 Gen10 Performance, ML350 Gen10 SMB, ML350 Gen10 Solution, ML350 Gen10 Special Server, ML350 Gen10 Sub-Entry, XL230k Gen10 Compute Tray, XL450 Gen10 HPE SimpliVity 380 Gen9 Node |
