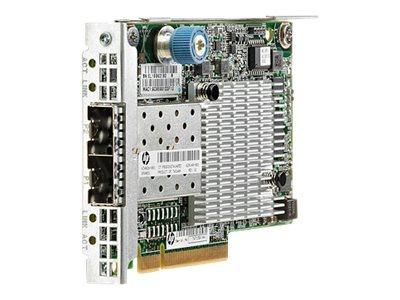

HPE FlexFabric 554FLR-SFP+ - Network adapter - PCIe 2.0 x8 - 10 GigE - 2 ports - for ProLiant DL360p Gen8, DL380p Gen8, DL388p Gen8, XL220a Gen8
- Brand
- Hewlett Packard Enterprise
- Product code
- 684213-B21
- SKU
- C5SD7CGCD83YF
- Dual-port 10 Gigabit Ethernet throughput (theoretical bandwidth)
- PCI Express interface
- Jumbo frames
- SR-IOV
- Interrupt coalescing
- 802.1p QoS tagging
- LED indicators
Description
LED indicators
Bracket LED indicators show link integrity and network activity for easy troubleshooting.
Dual-port 10 Gigabit Ethernet throughput (theoretical bandwidth)
The 20,000 Mbps full duplex Ethernet transfer rate per port, providing the network performance needed to improve response times and alleviate bottlenecks. 10 Gb Ethernet bandwidth is ideal for high performance computing, database clusters.
PCI express interface
The HPE 554FLR is designed with an eight lane (x8) PCI Express bus based on the PCIe 2.0 standard. The adapter is backward compatible with four LANE (x4) PCI Express, automatically auto-sensing between x8 and x4 slots.
Jumbo frames
Jumbo frames permit a 9,000 byte transmission unit (MTU). The HPE 554FLR adapter supports 9KB jumbo frames as a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups.
SR-IOV
The HPE 554FLR supports industry standard SR-IOV (Single Root Input Output Virtualization), which boosts IO performance and simplifies configuration in virtual environments. SR-IOV reduces CPU overhead when sharing networking resources between numerous virtual machines, thereby boosting overall server performance.
Interrupt coalescing
Interrupt coalescing (interrupt moderation) groups multiple packets, thereby reducing the number of interrupts sent to the host. This process optimizes host efficiency, leaving the CPU available for other duties.
802.1p QoS tagging
IEEE quality of service (QoS) 802.1p tagging allows the adapter to mark or tag frames with a priority level across a QoS-aware network for improved traffic flow.
| General | |
|---|---|
| Device type | Network adapter - 2 ports |
| Interface (Bus) Type | PCI Express 2.0 x8 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | |
| Connectivity technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data transfer rate | 10 Gbps |
| Features | Auto-negotiation, wake on LAN (WOL), Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.1Qau |
| Processor / Memory | |
| Processor | 1 x Emulex |
| RAM | 128 MB |
| Expansion / Connectivity | |
| Compatible Slots | 1 x FlexibleLOM |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, CISPR 22 Class A, EN 60950, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, MIC Class A, ACA, ACPI 1.1, BSMI Class A |
| Software / System Requirements | |
| OS Required | SunSoft Solaris 10, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Red Hat Enterprise Linux 5.x, VMware ESX 4.1, VMware ESX 4.0 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE ProLiant DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL388p Gen8 Base, XL220a Gen8 v2 |
