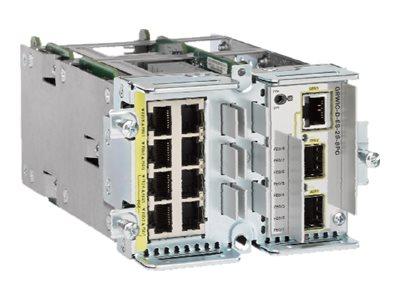

Cisco Ethernet Switch Module for the Cisco 2010 Connected Grid Router
Cisco Ethernet Switch Module for the Cisco 2010 Connected Grid Router - Switch - Managed - 8 x 10/100 + 1 x combo Gigabit SFP + 1 x Gigabit SFP - plug-in module - PoE - for Cisco 2010, 2010 Connected Grid
- Brand
- Cisco IOT
- Product code
- GRWIC-D-ES-2S-8PC=
- SKU
- OCCTKYZC3HFY7
- EAN/GTIN
- 882658435577
- Rugged industrial design and substation compliance: IEC-61850-3 and IEEE 1613 for utility substation environments
- Tools for easy deployment, management, and replacement
- Extensive instrumentation and remote diagnostic capabilities
- Advanced quality of service (QoS) capabilities to support mission-critical substation applications
- Comprehensive network security features based on open standards
€2346.64
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Switch - 8 ports - Managed |
| Enclosure Type | Plug-in module |
| Subtype | Fast Ethernet |
| Ports | 8 x 10/100 + 1 x combo Gigabit SFP + 1 x Gigabit SFP |
| Power over Ethernet (PoE) | PoE |
| Performance | Bandwidth:8 Gbps Forwarding performance:6.5 Mpps |
| Capacity | MAC addresses:4000 |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, SNMP 3, SNMP 2c, TFTP, CLI |
| Encryption Algorithm | MODBUS |
| Authentication method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | DHCP support, VPN support, DoS attack prevention, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, MLD snooping, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Remote Switch Port Analyzer (RSPAN) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag |
| RAM | 256 MB DDR2 SDRAM |
| Status Indicators | Port status, system, PoE, link/activity |
| Expansion / Connectivity | |
| Interfaces | 4 x 100Base-TX RJ-45 PoE 4 x 100Base-TX RJ-45 2 x SFP (mini-GBIC) 1 x 1000Base-T RJ-45 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, VCCI-I, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, EN 300 386 |
| Dimensions & Weight | |
| Width | 10.2 cm |
| Depth | 19.8 cm |
| Height | 7.6 cm |
| Weight | 0.95 kg |
| Environmental Parameters | |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
| Compatibility Information | |
| Designed For | Cisco 2010, 2010 Connected Grid |
