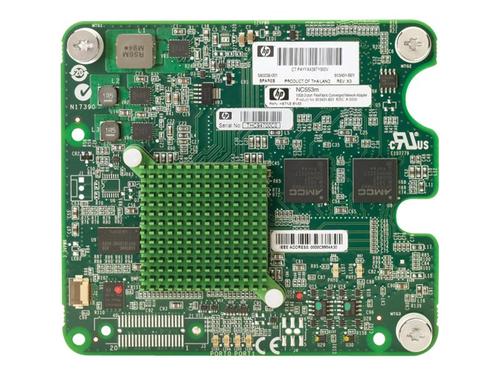

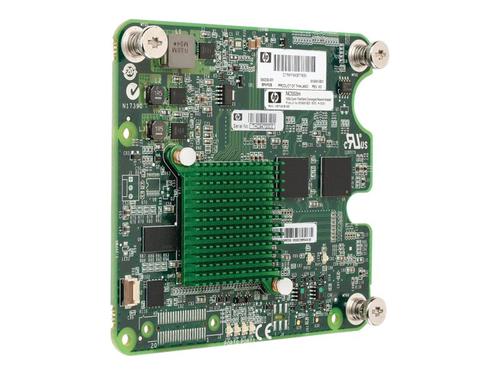

HP BLc NC553m DP FlexFabric Adptr Opt
- Brand
- Hewlett Packard Enterprise
- Product code
- 613431-B21
- SKU
- MJNF907X9IOX3
- EAN/GTIN
- 885631120309
- Great throughput and latency performance
- Fibre Channel over Ethernet
- Support for Jumbo Frames
- Hardware acceleration and offloads
- Integrated SerDes for backplane configurations
Description
Dual-port 10 Gigabit Ethernet throughput
The NC553m delivers outstanding network performance that improves response time and removes bottlenecks required for the data centers.
Fibre Channel over Ethernet
Combines the functionality of an industry-standard NIC with an industry-proven Fibre Channel mezzanine card, seamlessly converging the traffic over a shared lossless CEE Ethernet network.
Support for jumbo frames
The use of jumbo frames is a way to achieve higher throughput and better CPU utilization. Jumbo frames are particularly useful for database transfers and tape backups.
802.1Q VLANs
IEEE 802.1Q VLAN protocol allows each physical port of the NC553m to be separated into multiple virtual NICs for added network segmentation and enhanced security and performance. VLANs increase security by isolating traffic between users. Limiting the broadcast traffic to within the same VLAN domain also improves performance.
| General | |
|---|---|
| Device type | Network adapter - 2 ports |
| Networking | |
| Connectivity technology | Wired |
| Cabling type | Ethernet 10GBase-KX4 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data transfer rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, iSCSI |
| Features | Flow control, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap |
| Processor / Memory | |
| Processor | 1 x Broadcom |
| Expansion / Connectivity | |
| Interfaces | 2 x 10GBase-KX4 |
| Compatible Slots | 1 x Expansion Slot |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, VCCI, EN 60950, EN55022, ICES-003, RRL, IEC 60950, EN55024, UL 60950, EMC, MIC, AS/NZS 3548, FCC CFR47 Part 15, RoHS, ACA |
| Software / System Requirements | |
| OS Required | SunSoft Solaris 10, SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2003 SP2, Red Hat Enterprise Linux 5.4, Red Hat Enterprise Linux 5.5, SuSE Linux Enterprise Server 10 SP3 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Integrity BL860c i4 HPE ProLiant BL280c G6, BL2x220c G6, BL2x220c G6 Server A, BL2x220c G6 Server B, BL460c G6, BL460c G7, BL465c G6, BL465c G7, BL490c G6, BL490c G7, BL495c G6, BL620C G7, BL680c G7, BL685c G6, BL685c G7 |
