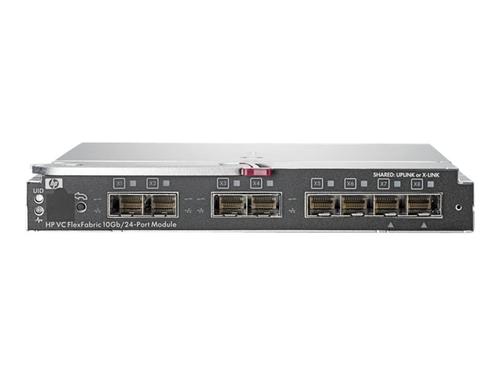

HPE Virtual Connect FlexFabric 10Gb/24-Port Module
571956-B21 - 884962102558
HP Virtual Connect FlexFabric 10Gb/24-port Module for c-Class BladeSystem
- Brand
- Hewlett Packard Enterprise
- Product code
- 571956-B21
- SKU
- 63R3Z46KN57DO
- EAN/GTIN
- 884962102558
- Extended list of direct attach copper cable connections supported
- Low latency throughput provides switch-like performance
- Pre-configure server I/O configurations prior to server installation for easy deployment
- Move, add, or change server network connections on the fly without LAN and SAN administrator involvement
- Port mirroring on any uplink provides network troubleshooting support
- IGMP snooping optimizes network traffic and reduces bandwidth for multicast applications
- Recognizes and directs server-side VLAN tags
- Provisioned storage resource is associated directly to a specific virtual machine
€21622.39
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Specifications
General
Device type
Switch - 24 ports
Enclosure Type
Plug-in module
Subtype
10 Gigabit Ethernet
Ports
16 x 10Gb Ethernet (backplane) + 4 x 10Gb Ethernet/8Gb Fibre Channel SFP+ + 4 x 10Gb Ethernet SFP+
MAC Address Table Size
8K entries
Fibre Channel
FC-AL, FC-AL-2, FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI
Routing Protocol
IGMPv2, IGMP
Remote Management Protocol
SNMP 1, SNMP 2, HTTP, HTTPS, CLI
Encryption Algorithm
SSL
Features
Auto-negotiation, LDAP support, VLAN support, wake on LAN (WOL), IGMP snooping, manageable
Compliant Standards
IEEE 802.2, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq
Status Indicators
Port status, link OK, module locator, link/activity
Expansion / Connectivity
Interfaces
16 x 10Gbit LAN 4 x 8Gb Fibre Channel SFP+ 4 x 10Gbit LAN SFP+
Miscellaneous
Compliant Standards
UL, TUV, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55022 Class A, CB, AS/NZ 3548 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FCC Part 15 A, MIC Class A, CSA C22.2 No. 60950-1
Dimensions & Weight
Width
26.8 cm
Depth
19.3 cm
Height
2.8 cm
Weight
1.27 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90%
Compatibility Information
Designed For
HPE BLc3000 Enclosure HPE BLc7000 Single-Phase Enclosure w/2 Power Supplies and 4 Fans w/8 Insight Control Environment Trial Licenses, w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses HPE BLc7000 Three-Phase Enclosure w/6 Power Supplies and 10 Fans w/16 Insight Control Environment Licenses HPE Integrity BL860c i4 HPE ProLiant BL280c G6, BL2x220c G6, BL2x220c G6 Server A, BL2x220c G6 Server B, BL460c G6, BL465c G6, BL490c G6, BL495c G6, BL685c G6
