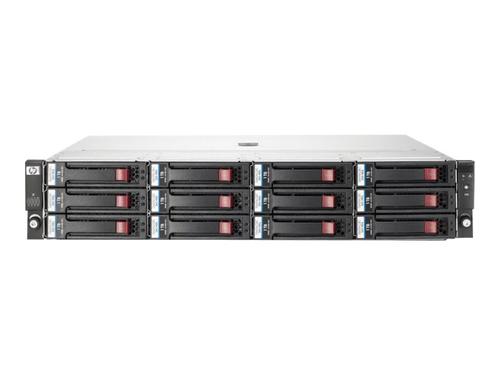

HP StorageWorks D2600 w/12 2TB 6G SAS 7.2K LFF DP MDL HDD 24TB Bundle
- Brand
- Hewlett Packard Enterprise
- Product code
- BK766A
- SKU
- IT3GBIA3MNBJP
- Affordable, low cost storage
- Flexible/scalable
- High performance 6 Gb SAS host connectivity
Description
Affordable, low cost storage
Modular platform provides investment protection and by purchasing only what is needed today, allows for growth as storage requirements evolve. Buying storage only when needed simplifies planning and relieves budget pressures. Enterprise-class dual-port SAS or archival-class SATA drives as the need and budget dictates.
Flexible/scalable
Grow storage capacity easily by attaching up to four D2600 enclosures from a single controller port, for expansion of up to 8 enclosures or 96 drives, allowing for room to grow as storage demands increase. Flexibility to mix and match SAS and SATA drives in the same enclosure.
High performance 6 Gb SAS host connectivity
6 Gb SAS host connectivity enables a higher data transfer rate. SAS disk enclosure support for BladeSystems utilizing the HPE 6 Gb SAS BL switch. Since storage is contained within the rack, latency is reduced as data does not travel over large distances.
| General | |
|---|---|
| Device type | Storage enclosure |
| Enclosure Type | Rack-mountable - 2U |
| Chassis | |
| Installed Devices / Modules Qty | 12 |
| Supported Devices / Modules Qty | 12 |
| Supported Drives | SATA-300 / SAS-2 |
| Storage | |
| Max Supported Capacity | 24 TB |
| Processor | |
| CPU | No CPU |
| Hard drive | |
| Type | HDD - hot-swap |
| Capacity | 12 x 2 TB |
| Interface type | SAS 6Gb/s |
| Spindle Speed | 7200 rpm |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 0 (free) x hot-swap - 3.5" x 1/3H |
| Interfaces | 1 x SAS 6Gb/s |
| Miscellaneous | |
| Cables included | 2 x SAS cable - 50 cm |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Dimensions & Weight | |
| Width | 45 cm |
| Depth | 56.7 cm |
| Height | 8.8 cm |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 90% |
