HPE MSR50-40

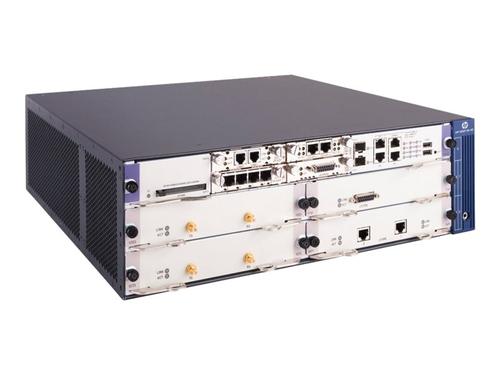

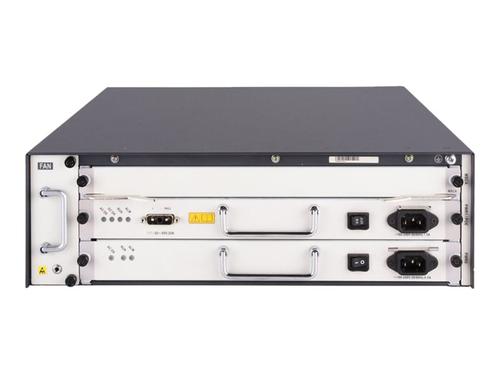

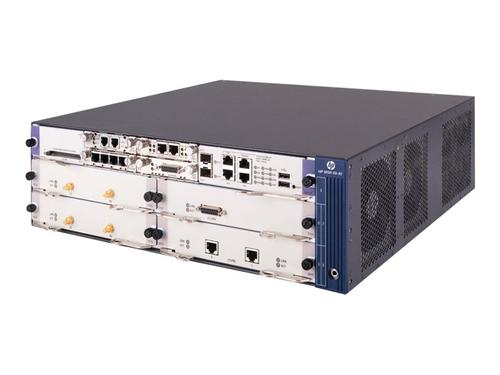

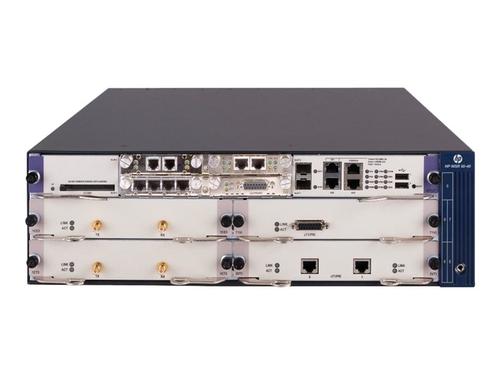

HP MSR 50-40 Router
- Brand
- Hewlett Packard Enterprise
- Product code
- JD433A
- SKU
- PIGRKE1VN47MB
- EAN/GTIN
- 885631188842
- Management interface control provides management access through modem port and terminal interface; provides access through terminal interface, telnet, or SSH
- Industry-standard CLI with a hierarchical structure: reduces training time and expenses, and increases productivity in multivendor installations
- Management security: multiple privilege levels, with password protection, restrict access to critical configuration commands; ACLs provide telnet and SNMP access; local and remote syslog capability allows logging of all access
- Remote Monitoring (RMON): uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
- High-density port connectivity
- Multiple WAN interfaces
- 3G access support allows use of SIC 3G module for high reliability; supports popular USB 3G modem
- Ideal IP telephony solutions
- Flexible port selection provides combination of fiber and copper interface modules, 100/1000Base-X auto-speed selection, and 10/100/1000Base-T auto-speed detection plus auto duplex and MDI/MDI-X
- Excellent forwarding performance
- Powerful encryption capacity
- Hot swappable
- Virtual Router Redundancy Protocol (VRRP) allows a group of routers to dynamically back each other up to create highly available routed environments
- Dual internal power supply provides high reliability
- Spanning Tree fully supports standard IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol
- IGMP and MLD snooping: effectively controls and manages the flooding of multicast packets in a Layer 2 network
- Port mirroring: duplicates port traffic (ingress and egress) to a local or remote monitoring port
- VLANs: support up to 4094 ports or IEEE 802.1Q-based VLANs
- Address Resolution Protocol (ARP) determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
- User Datagram Protocol (UDP) helper redirects UDP broadcasts to specific IP subnets to prevent server spoofing
- Dynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets
- Static IPv4 routing provides simple, manually configured IPv4 routing
- Routing Information Protocol (RIP) uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
- OSPF: Interior Gateway Protocol (IGP) using link-state protocol for faster convergence; supports ECMP, NSSA, and MD5 authentication for increased security and graceful restart for faster failure recovery
- Border Gateway Category Protocol 4 (BFP-4): Exterior Gateway Protocol (EGP) with path vector protocol uses TCP for enhanced reliability for the route discovery process, reduces bandwidth consumption by advertising only incremental updates, and supports extensive policies for increased flexibility, as well as scales to very large networks
- Intermediate system to intermediate system (IS-IS): Interior Gateway Protocol (IGP) using path-vector protocol, which is defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)
€2077.13
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Modular expansion base |
| Enclosure Type | Rack-mountable - modular - 3U |
| Connectivity technology | Wired |
| Network / Transport Protocol | TCP/IP, L2TP, RSVP, NTP, PPPoE |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, Telnet, SNMP 3, HTTP, FTP, SSH |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Firewall protection, DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, FCC Part 68, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, WEEE, EN 60825-1 |
| Processor | 2 x 400 MHz |
| Expansion / Connectivity | |
| Interfaces | USB:1 x Management:1 x |
| Expansion slots | 4 (total) / 4 (free) x Flexible Interface Card (FIC) |
| Installed Modules Qty (Max) | 0 (installed) / 4 (max) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 43.6 cm |
| Depth | 42.4 cm |
| Height | 13.1 cm |
| Weight | 18 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% |
