HPE 8812

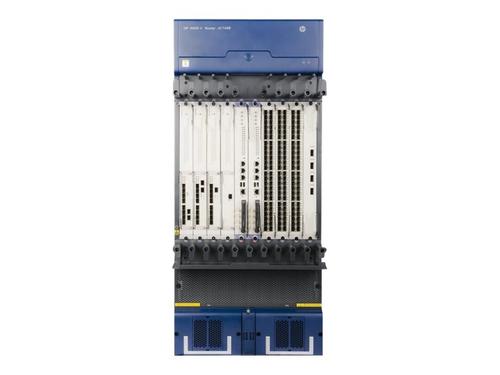

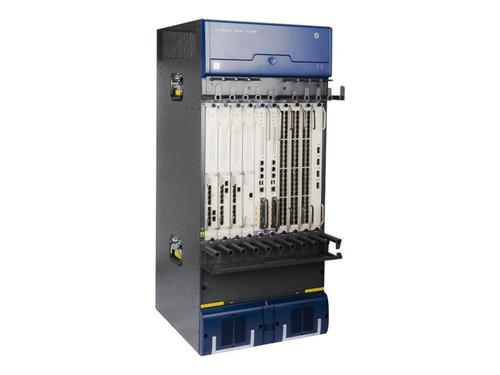

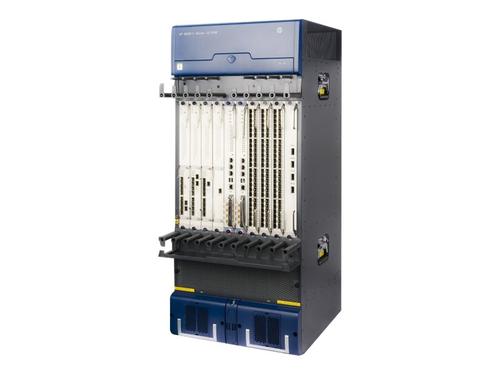

HP 8812 Router Chassis
- Brand
- Hewlett Packard Enterprise
- Product code
- JC150B
- SKU
- CS863PCNQ4OKZ
- EAN/GTIN
- 885631252406
- Management interface control - provides management access through modem port, terminal interface, as well as in-band and out-of-band Ethernet ports; provides access through terminal interface, telnet, or SSH
- Industry-standard CLI with a hierarchical structure - reduces training time and expenses, and increases productivity in multivendor installations
- Management security - includes multiple administration levels, with password protection and restricted access to critical configuration commands; ACLs provide telnet and SNMP access; local and remote syslog capability allows logging of all access
- Provides complete support of SNMP as well as full support of industry-standard MIBs and private MIB extensions
- Remote Monitoring (RMON) uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
- Flexible port selection
- Packet storm protection - protects against broadcast, multicast, or unicast storms with user-defined thresholds
- Multiple WAN interfaces support Fast Ethernet/Gigabit Ethernet/10 GbE ports, OC3~OC192 POS, ATM ports, and 10 GbE RPR
- Industry-leading performance - provides switching capacity up to 1440 Gbps and forwarding performance up to 864 Mpps
- Flexible chassis selection
- Scalable system design
- Separate data and control plane provide continual services
- Passive backplane design: backplane has no active components to increase the system reliability
- Redundant design of main processing unit and power supply: increases the overall system availability
- IP Fast Reroute Framework (FRR) - nodes are configured with backup ports and routes; local implementation requires no cooperation of adjacent devices, simplifying the deployment; solves the traditional convergence faults in IP forwarding; realizes restoration within 50 ms, with the restoration time independent of the number of routes and fast link switchovers without route convergence
- Hitless patch upgrades allow patches to be installed without restarting the equipment, increasing network uptime and facilitating maintenance
- VLANs: support up to 4096 port or IEEE 802.1Q-based VLANs
- Spanning Tree fully supports standard IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol
- BPDU tunneling transmits Spanning Tree Protocol BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
- IGMP/MLD snooping effectively controls and manages the flooding of multicast packets in a Layer 2 network
- Port mirroring duplicates port traffic (ingress and egress) to a local or remote monitoring port; supports 64 mirroring groups, with an unlimited number of ports per group
- Address Resolution Protocol (ARP) determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
- User Datagram Protocol (UDP) helper redirects UDP broadcasts to specific IP subnets to prevent server spoofing
- Dynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client and server; DHCP Relay enables DHCP operation across subnets
- Domain Name System (DNS) is a distributed database that provides translation between a domain name and an IP address, which simplifies network design; supports client and server
- Static IPv4 routing provides simple, manually configured IPv4 routing
- Routing Information Protocol (RIP) uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
- Static IPv6 routing provides simple, manually configured IPv6 routing
€12065.91
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Modular expansion base |
| Enclosure Type | Rack-mountable - 17U |
| Connectivity technology | Wired |
| Network / Transport Protocol | TCP/IP, L2TP, RSVP, NTP, PPPoE |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, IGMPv2, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, FTP, SSH, CLI |
| Encryption Algorithm | MD5, SSL, TLS |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | DHCP support, NAT support, VPN support, NAPT support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, FCC Part 68, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, WEEE, EN 60825-1 |
| Expansion / Connectivity | |
| Interfaces | Management:1 x |
| Expansion slots | 14 (total) / 14 (free) x Expansion Slot |
| Installed Modules Qty (Max) | 0 (installed) / 14 (max) |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 45 cm |
| Height | 75.3 cm |
| Weight | 120 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 10 - 95% |
