Sony RM-IP10 - Camera remote control - cable
- Brand
- Sony
- Product code
- RM-IP10
- SKU
- AE3R7AJTF5NC8
- Remote control proper use: Digital camera
- Brand compatibility: Sony
- Grey
- Press buttons
- Control of up to 112 BRC cameras via IP
- Additional ability to use VISCA control
- Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection
- Up to 5 controllers can operate on a single network
- Simultaneous preset recall to all cameras under control
Product Info
Control of up to 112 BRC cameras via an IP network
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network, or 7 cameras over a traditional VISCA-controlled network. Up to 5 remote control panels can share control of the system.
Easy to install control for BRC-H900, BRC-Z330 and BRC-Z700 cameras
The RM-IP10 is compatible with the BRC-H900 and BRC-Z330 cameras when they are fitted with the BRBK-IP10 option board, and the BRC-Z700 camera when it is fitted with the BRBK-IP7Z option board. Easy and economical installation and set-up saves you time and cost.
Description
Control of up to 112 BRC cameras via IP
The RM-IP10 remote control panel gives you control of up to 112 BRC cameras over an IP network.
Additional ability to use VISCA control
The RM-IP10 can also control up to 7 BRC cameras over a traditional VISCA (video system control architecture) network.
Simple RJ-45 (10Base-T/100Base-TX) connection for easy connection
The RM-IP10 links to an IP network with via a RJ-45 connector providing very easy, low cost and speedy installation.
Up to 5 controllers can operate on a single network
Up to 5 RM-IP10 control panels can be used on a single network allowing shared control and simultaneous multi-operator control of large camera systems.
Simultaneous preset recall to all cameras under control
Instantaneous set-up of multiple cameras provides a big time saving for camera adjustments.
| General | |
|---|---|
| Device type | Camera remote control |
| Width | 39.12 cm |
| Depth | 14.59 cm |
| Height | 16.5 cm |
| Weight | 1 kg |
| Connectivity technology | Cable |
| Supported devices | Camera |
| Features | Joystick, joystick lock button |
| Network | |
| Network Protocols Supported | IP |
| Connections | |

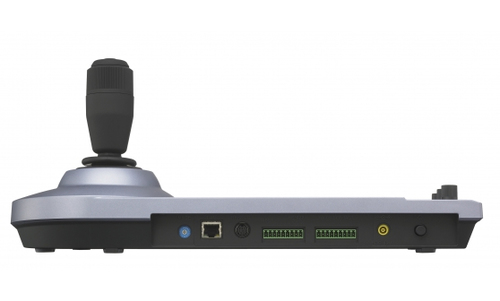

| Connector type | 1 x LAN (RJ-45) 1 x serial output (8 PIN mini-DIN) 2 x serial 1 x DC power input |
