Tripp Lite 24U Rack Enclosure Server Cabinet 33" Deep w/ Doors & Sides - Rack cabinet - black - 24U - 19"
- Brand
- TRIPP LITE
- Product code
- SR24UB
- SKU
- F7M9YRMFOOMP1
- EAN/GTIN
- 037332185228
- 24U rack constructed from powder-coated steel that stands up to tough environments
- Maximum capacity: 1,000 lb. (453 kg) stationary and rolling load
- Doors and side panels lock securely to help prevent damage, tampering or theft
- Ships fully assembled for immediate deployment and equipment mounting
- Provides physical equipment and media security required for PCI DSS compliance
Product Info

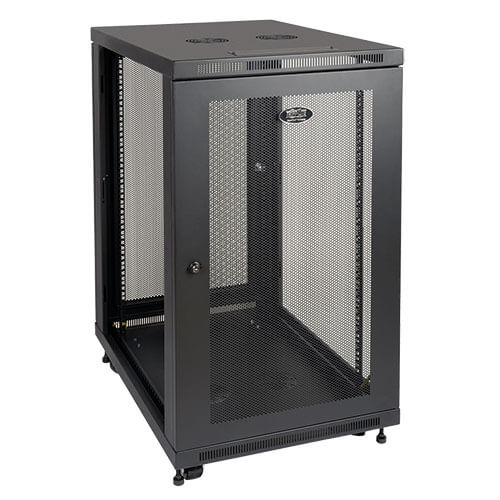

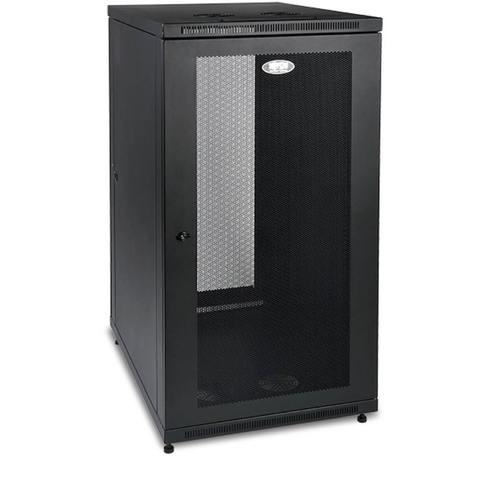

SmartRack® 24U Mid-Depth Rack Enclosure Cabinet is packed with features designed to simplify rack equipment installations and rack equipment maintenance: top and bottom cable routing ports, perforated front and rear doors and solid side panels promote efficient airflow, adjustable vertical mounting rails and more. And as part of the SmartRack family, the SR24UB is compatible with an extensive range of rack-mount accessories, enabling you to customize your solution to meet any requirement. The SR24UB ships fully assembled for quick installation.
The SR24UB is compatible with all standard 19-inch rack equipment and features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from three to 32.5 inches, ideal for standard server installation. Adjustment is quick and convenient: simply unscrew the rails, slide them to the desired depth and restore the screws. The rails feature square mounting holes and are capable of supporting up to 1,000 pounds (453.6 kilograms) of equipment with included installation hardware. Each rack space within the enclosure is numbered for easy reference.

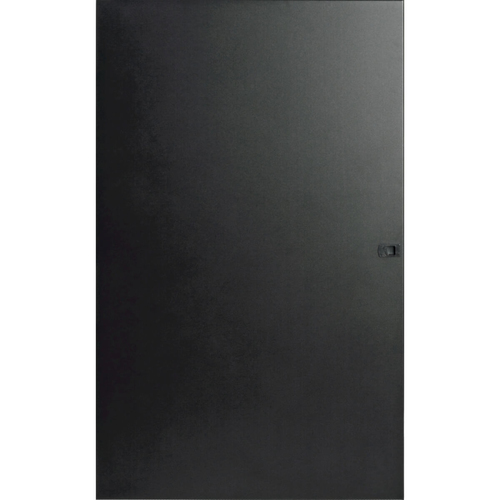

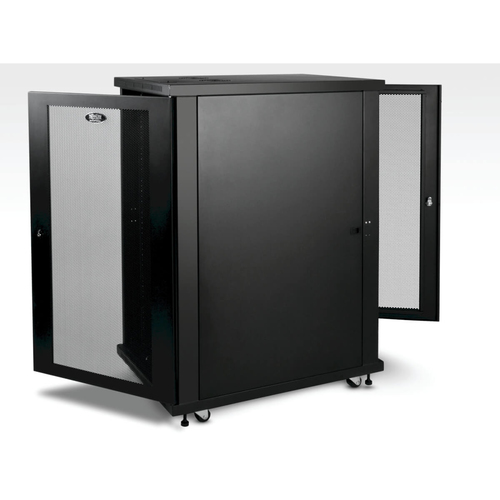

With a locking, reversible front/rear doors and locking, removable side panels, the SR24UB provides safe, secure installation for all equipment. This prevents unauthorized access to installed equipment while making it easy for authorized personnel to perform inspections, maintenance and equipment replacement. The enclosure meets all requirements toward PCI DSS compliance.
The top and bottom panels of the SR24UB are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans (SRFANWM). The top and bottom panels are also provided with ports for cable routing.

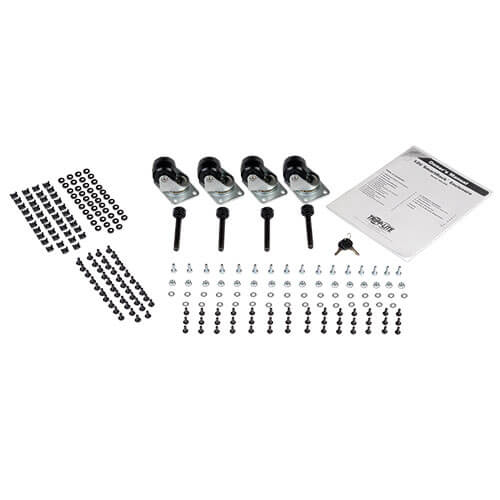

To simplify deployment, the SR24UB comes with an accessory caster kit consisting of four casters and all required installation hardware. With the casters installed, the SR24UB can easily be maneuvered into the desired location, and then secured in place by adjusting the unit's levelers. Note: The casters are intended for minor position adjustments within the final installation area only and are not designed for moving the enclosure over long distances.
| Features | |
|---|---|
| Rack capacity | 24U |
| Type | Freestanding rack |
| Maximum weight capacity | 453.6 kg |
| Product colour | Black |
| Certification | RoHS, UL |
| Weight & dimensions | |
| Width | 600 mm |
| Depth | 850 mm |
| Height | 1158 mm |
| Weight | 55.8 kg |
| Packaging data | |
| Package width | 660.4 mm |
| Package depth | 889 mm |
| Package height | 1320.8 mm |
| Package weight | 78 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 650.2 mm |
| Master (outer) case length | 890 mm |
| Master (outer) case height | 1290.1 mm |
| Master (outer) case gross weight | 66.7 kg |
| Products per master (outer) case | 1 pc(s) |
