Tripp Lite 12U Wall Mount Rack Enclosure Server Cabinet w/ Door & Side Panels - Rack cabinet - wall mountable - black - 12U - 19"
- Brand
- TRIPP LITE
- Product code
- SRW12U
- SKU
- BO5C3IID2OJMR
- EAN/GTIN
- 037332174451
- Maximum load capacity of 200 lbs (90.7 kgs)
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 16.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
Product Info

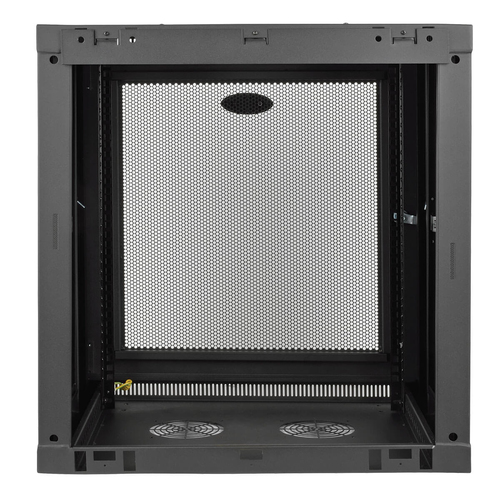

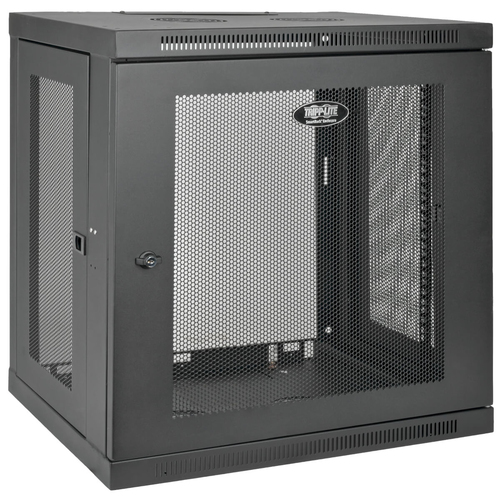

The SRW12U SmartRack® 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

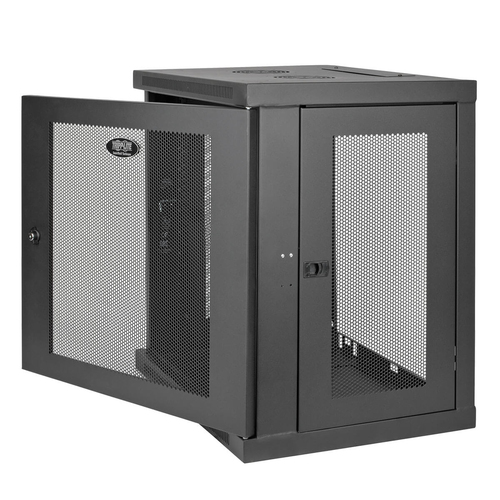

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

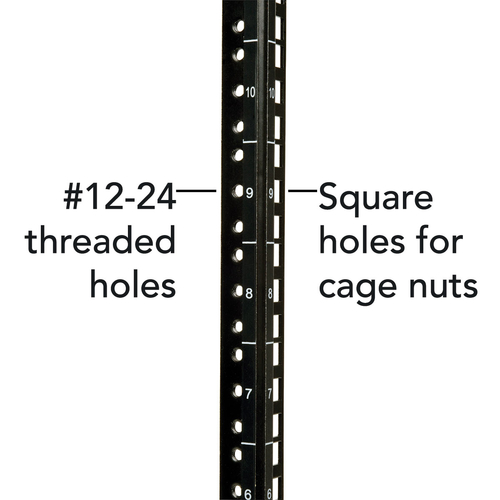

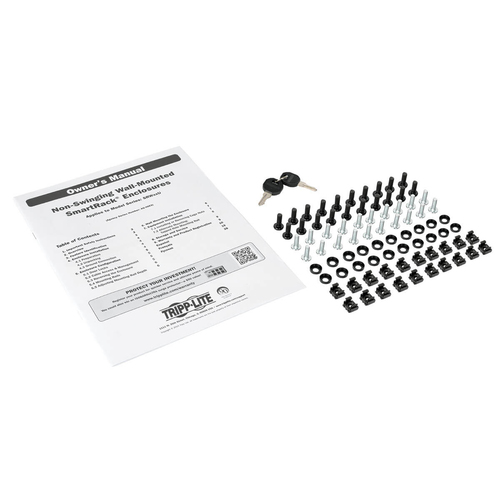

The SRW12U comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
| Features | |
|---|---|
| Rack capacity | 12U |
| Type | Wall mounted rack |
| Maximum weight capacity | 90.7 kg |
| Product colour | Black |
| Certification | RoHS, EIA-310-E |
| Weight & dimensions | |
| Width | 596.9 mm |
| Depth | 444.5 mm |
| Height | 637 mm |
| Weight | 20 kg |
| Packaging data | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Package width | 523.2 mm |
| Package depth | 713.7 mm |
| Package height | 670.6 mm |
| Package weight | 20 kg |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 523.2 mm |
| Master (outer) case length | 713.7 mm |
| Master (outer) case height | 670.6 mm |
| Master (outer) case gross weight | 20 kg |
| Products per master (outer) case | 1 pc(s) |
