Logitech Tap IP Appliance Room Solutions Huddle + Small Rooms - Video conferencing kit (Logitech Tap IP, Logitech Rally Bar Huddle) - graphite
€2888.05
- Brand
- Logitech
- Product code
- 991-000482
- SKU
- P5PY5NANWDOQ6
- Group video conferencing system 6 person(s)
- Bluetooth
- 4K Ultra HD
- Built-in speaker(s)
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi
- Single camera 4x
- Power source type: AC
- Graphite
Sold Out
Product Info

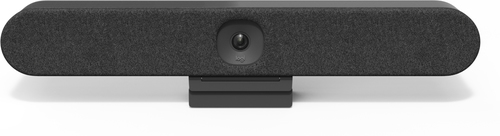

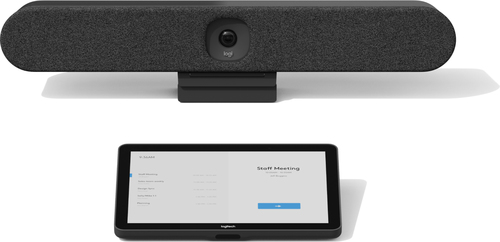

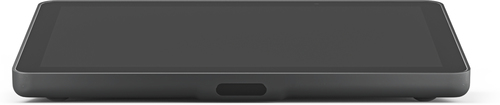

Rally Bar Huddle + Tap IP
Full solution featuring an all-in-one video bar and touch controller with PoE connectivity. Ideal for huddle and small rooms up to 6 people.
| Performance | |
|---|---|
| Number of persons | 6 person(s) |
| Bluetooth | Yes |
| Product colour | Graphite |
| Camera cable length (max) | 2.2 m |
| Product type | Group video conferencing system |
| Pan range | -48 - 48° |
| Tilt angle range | -32 - 32° |
| PTZ control | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Audio | |
| Built-in speaker(s) | Yes |
| Line-out impedance | 4 Ω |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Audio beamforming | Yes |
| Sample rates | 0 - 48 kHz |
| Driver diameter | 5.5 cm |
| Speaker power | 8 W |
| Ports & interfaces | |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac) |
| Security algorithms | 128-bit AES |
| Camera | |
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 4x |
| Horizontal field of view | 113° |
| Vertical field of view | 80° |
| Diagonal field of view | 120° |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Display | |
| Display | IPS |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Contrast ratio (typical) | 1000:1 |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
| Display brightness | 400 cd/m² |
| Oleophobic coating | Yes |
| Microphone | |
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Number of microphones | 6 |
| Features | |
| Telepresence | No |
| Motion sensor | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Computer system | |
| VESA mounting | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 2.1 A |
| DC input voltage | 19 V |
| Weight & dimensions | |
| Interface module dimensions (W x D x H) | 246.2 x 171.3 x 56.1 mm |
| Interface module weight | 1 kg |
| Width | 549.6 mm |
| Depth | 76 mm |
| Height | 78.9 mm |
| Weight | 1.8 kg |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Packaging content | Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable |
