Logitech Cat5e Kit - Video conferencing accessory kit - for Logitech Base Bundle, RoomMate + MeetUp + Tap IP, Room Solution Base Bundle, Huddle, Large
- Brand
- Logitech
- Product code
- 952-000019
- SKU
- 03KYUZHQT7U8S
- Includes all cabling, power supply, and adapters to connect Logitech Tap to a meeting room computer
- Standard Cat5e cabling supplies USB data and power to Logitech Tap
- Option to use the included 10 metres of cable or supply your own Cat5e cabling for runs of up to 40 metres
- Compatible with Table Mount, Riser Mount, and Wall Mount for Logitech Tap
Product Info
The Cat5e Kit connects Logitech Tap up to 40 meters away from the meeting room computer using category cabling.
Unlike USB, Cat5e supplies both data and power over a single cable, and thus eliminates the need for a separate outlet at the table to run Tap. Cat5e cabling can also be cut and crimped to exact lengths, doing away with cable coils for clutter-free deployments of Tap.

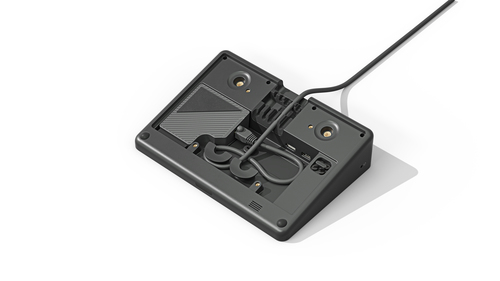

While 10 meters of cabling are included, any Cat5e or higher cabling can be used for runs of up to 40 meters. Additionally, the Cat5e Kit is compatible with a Logitech Tap Table Mount, Riser Mount, and Wall Mount, enabling convenient operation of Tap with smart cable routing.
In all, the Cat5e Kit allows for the placement of Logitech Tap nearly anywhere while maintaining a clean meeting room appearance.
| Network | |
|---|---|
| Cable types supported | Cat5e |
| Features | |
| Product colour | Graphite |
| Maximum operating distance | 40 m |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Input voltage | 100 - 240 V |
| Weight & dimensions | |
| Width | 83 mm |
| Depth | 85 mm |
| Height | 29 mm |
| Packaging data | |
| Package width | 227 mm |
| Package depth | 337 mm |
| Package height | 43.5 mm |
| Package weight | 1.03 kg |
| Packaging content | |
| AC adapter included | Yes |

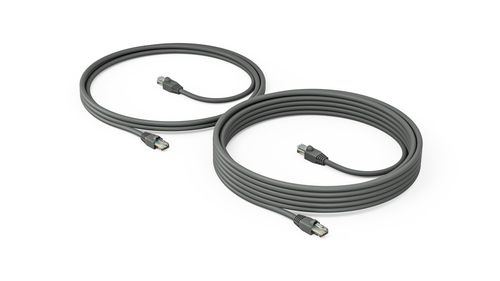

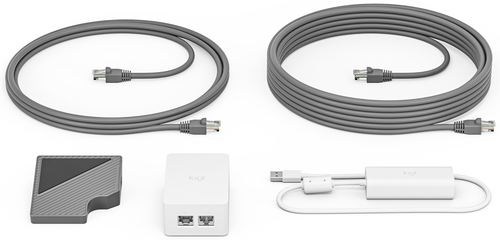

| Packaging content | Logitech Tap Receiver Dongle Transceiver 100-240V Power Supply with International Adaptor Set 2.97 m / 9.74 ft Cat5e Cable 7.0 m / 22.96 ft Cat5e Cable Documentation |
| Technical details | |
| Power source type | AC |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
| Master (outer) case width | 269 mm |
| Master (outer) case length | 347 mm |
| Master (outer) case height | 244 mm |
| Master (outer) case gross weight | 6.51 kg |
