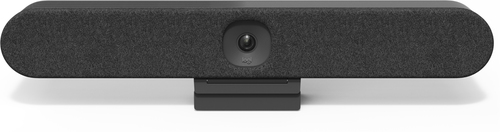

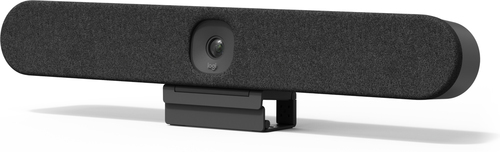

Logitech Rally Bar Huddle video conferencing system

Performance

Bluetooth Yes

Product colour Graphite

Camera cable length (max) 2.2 m

Product type Group video conferencing system

Pan range -48 - 48°

Tilt angle range -32 - 32°

PTZ control Yes

Video

HD type 4K Ultra HD

Audio

Built-in speaker(s) Yes

Line-out impedance 4 Ω

Output voltage Total Harmonic Distortion (THD) 2%

Audio beamforming Yes

Echo cancellation Yes

Sample rates 0 - 48 kHz

Driver diameter 5.5 cm

Speaker power 8 W

Ports & interfaces

HDMI output ports quantity 1

HDMI input ports quantity 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Wi-Fi Yes

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Supported network protocols IPv4, IPv6 Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Security algorithms 128-bit AES

Camera

Camera type Single camera

Zoom capability Yes

Digital zoom 4x

Horizontal field of view 113°

Vertical field of view 80°

Diagonal field of view 120°

Privacy camera Yes

Privacy type Privacy shutter

Microphone

Microphone sensitivity -36 dB

Microphone frequency 90 - 16000 Hz

Sound pressure level (max) 83 dB

Number of microphones 6

Features

Telepresence No

Computer system

Windows operating systems supported Windows 10, Windows 11

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 10 - 90%

Storage temperature (T-T) -25 - 70 °C

Power

Power source type AC

AC input voltage 100-240 V

Current 2.1 A

DC output voltage 19 V

Power plug type Type G

Weight & dimensions

Width 549.6 mm

Depth 76 mm

Height 78.9 mm

Weight 1.8 kg

Packaging content

Cables included AC, DC, HDMI, USB Type-A to USB Type-C

Power cable length 2.5 m

HDMI cable length 2 m

AC adapter included Yes

Packaging content Rally Bar Huddle Multi-Mount Power supply AC power cord HDMI cable USB cable
