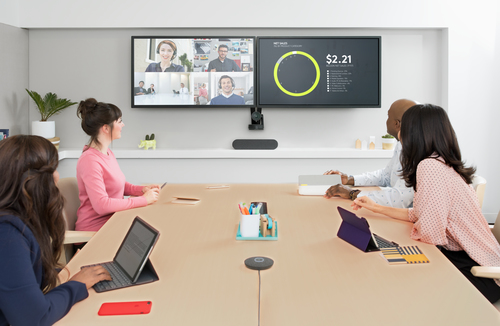

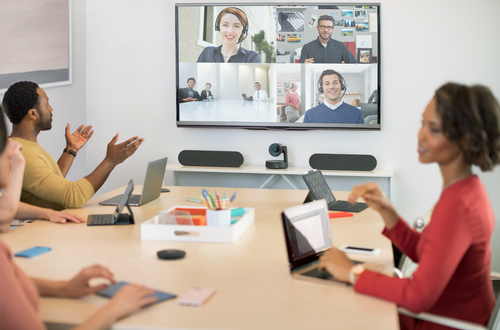

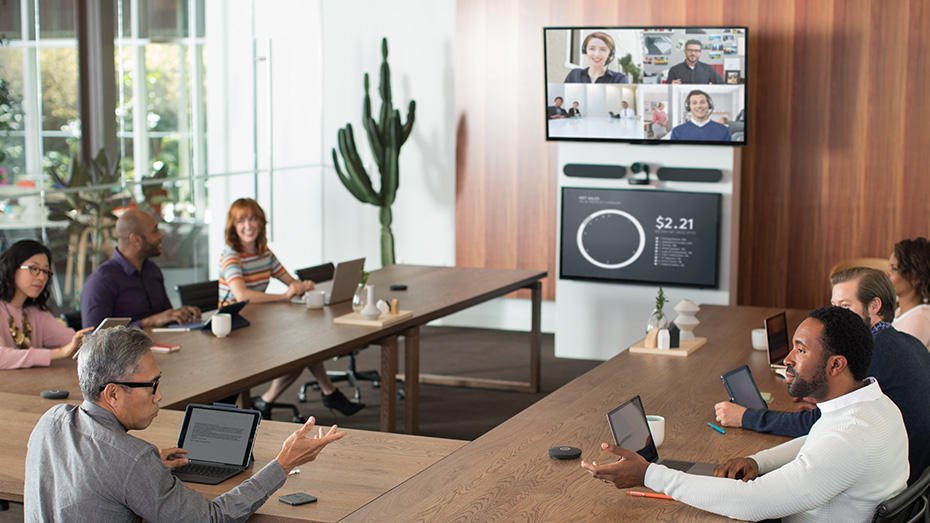

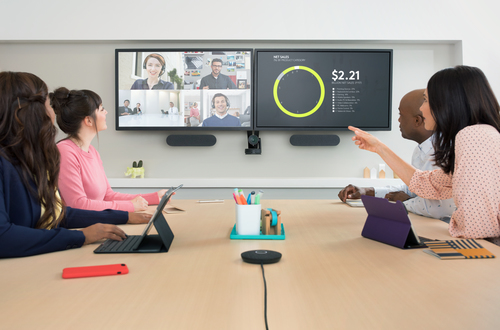

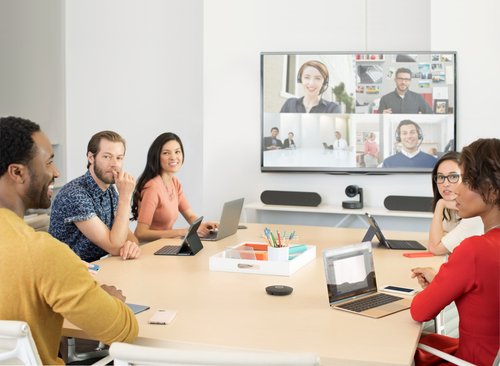

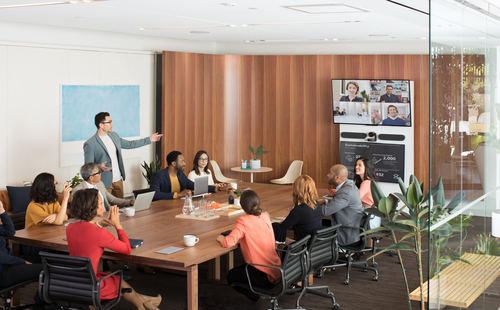

Small Rally Package (1 x Microphone, 1 x Speaker, Hubs and Camera). This solution with the Rally camera, is perfect for up to 10 people. This solution with the Rally camera, is perfect for up to 10 people.
- Brand
- Logitech
- Product code
- 960-001237
- SKU
- U9AM3C9LPRSG7
- EAN/GTIN
- 50992060826001
- Logitech extended guarantee adds one year to the original manufacturer's guarantee, which provides that your Logitech Rally hardware shall be free from defects in material and workmanship.
- The purchase of a one-year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two-year guarantee.
- Logitech one-year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
- The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware.
- A three-year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Product Info
The purchase of a one-year Logitech extended warranty along with the purchase of Rally adds one additional year to the original Logitech manufacturer's two-year guarantee and is intended to ensure that your Logitech hardware is free from defects in material and workmanship.
This extended guarantee helps to protect your investment, maximise its value and ensure optimal performance of your Logitech conference room hardware for a total of three years. This is right in line with the typical depreciation and replacement cycle of most conference room equipment.
Description
Advanced Modular Audio

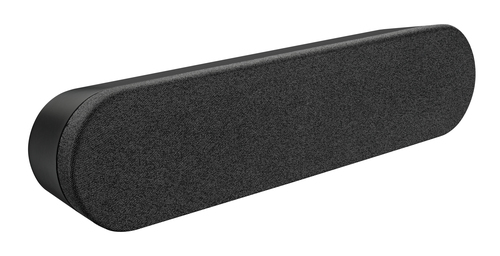

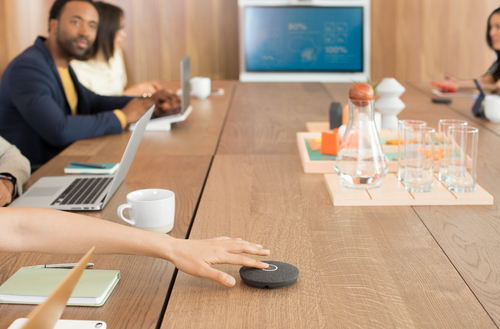

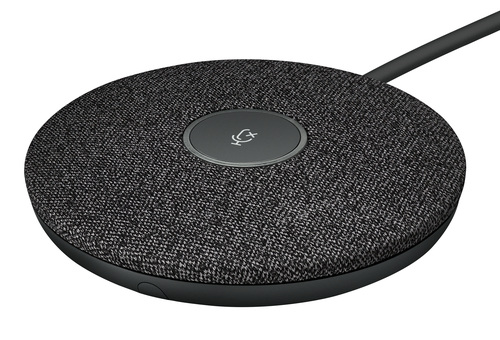

Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that's natural, crisp, and highly intelligible. Logitech RightSound ™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound.
Sleek Industrial Design

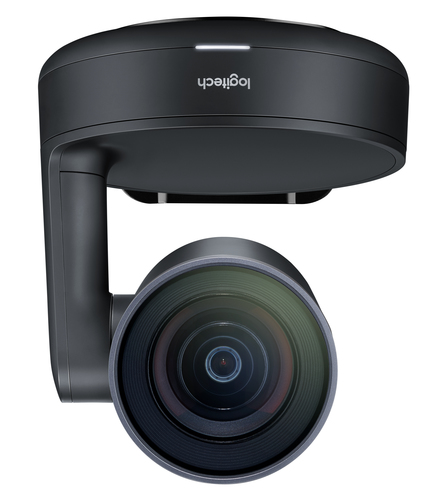

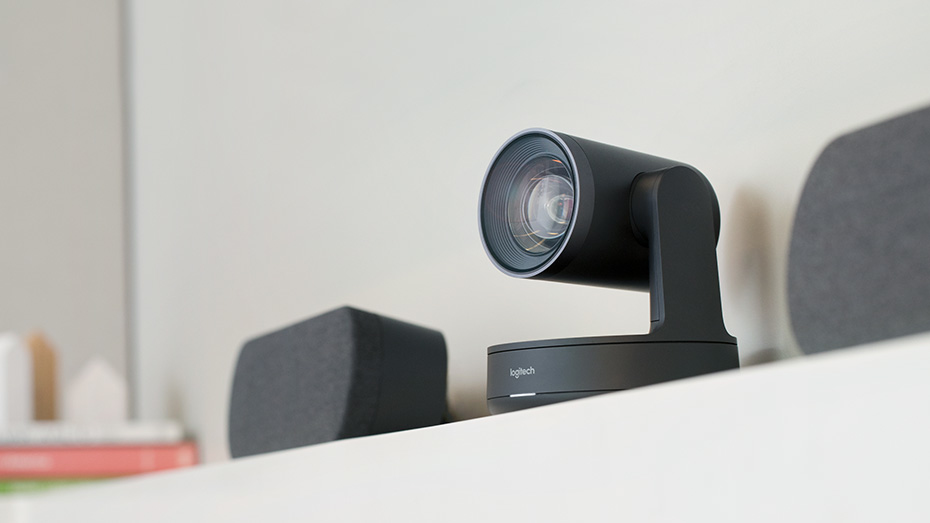

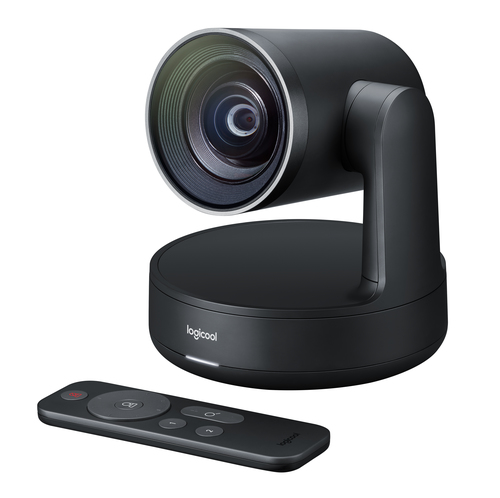

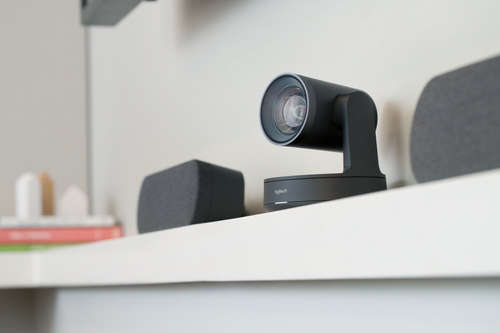

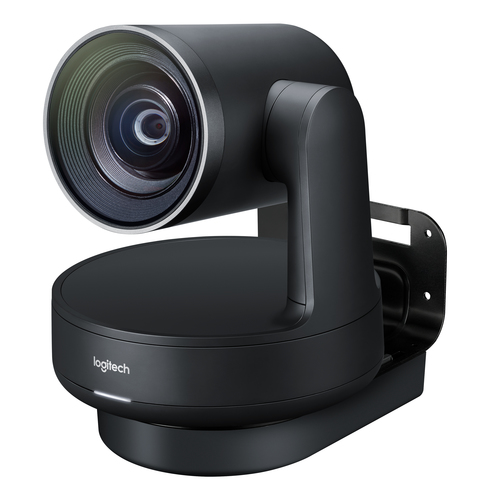

Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.
Enhanced User Experience
Logitech RightSense ™ is a suite of technologies built into Rally that automate a better user experience. RightSight ™ perfectly auto-frames participants no matter their distance from the lens. RightLight ™ prioritizes faces over environment to render natural-looking skin tones while RightSound ™ enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings automatically!
Smart Cabling and Content Sharing

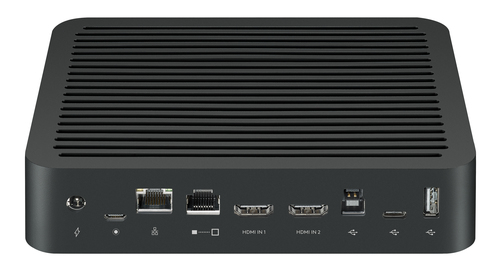

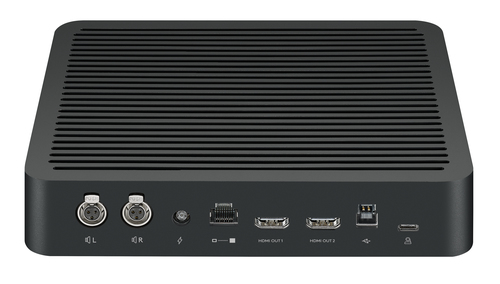

With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.
| Performance | |
|---|---|
| Number of persons | 10 person(s) |
| Product colour | Black |
| Product type | Group video conferencing system |
| Pan range | -90 - 90° |
| Pan speed | 70 °/sec |
| Tilt speed | 70 °/sec |
| Tilt angle range | -90 - 50° |
| PTZ control | Yes |
| Tripod mounting supported | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Supported video modes | 576p, 720p, 900p, 1080p, 1440p, 2160p |
| Maximum frame rate | 60 fps |
| Audio | |
| Frequency range | 300 - 10000 Hz |
| Output level | 95/100 dB |
| Noise reduction | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 4.5 m |
| Sample rates | 0 - 48 kHz |
| Ports & interfaces | |
| HDMI ports quantity | 4 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| DC-in jack | Yes |
| Line-in | Yes |
| Interface module | |
| Interface module HDMI input ports quantity | 2 |
| Interface module HDMI output ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Camera | |
| Zoom capability | Yes |
| Digital zoom | 15x |
| Focus adjustment | Auto |
| Number of camera presets | 3 |
| Microphone | |
| Microphone colour | Black |
| Microphone sensitivity | -27 dB |
| Microphone frequency | 90 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Microphone mute | Yes |
| Sound pressure level (max) | 95 dB |
| Number of microphones | 4 |
| Number of microphone arrays | 1 |
| Features | |
| Telepresence | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Logistics data | |
| Master (outer) case gross weight | 9.5 kg |
| Master (outer) case length | 348 mm |
| Master (outer) case width | 240 mm |
| Master (outer) case height | 736 mm |
| Harmonized System (HS) code | 85176990 |
| Battery | |
| Battery capacity | 0.675 Wh |
| Computer system | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Power | |
| Power source type | AC |
| Battery technology | Lithium |
| Battery capacity | 220 mAh |
| Number of batteries supported | 2 |
| Weight & dimensions | |

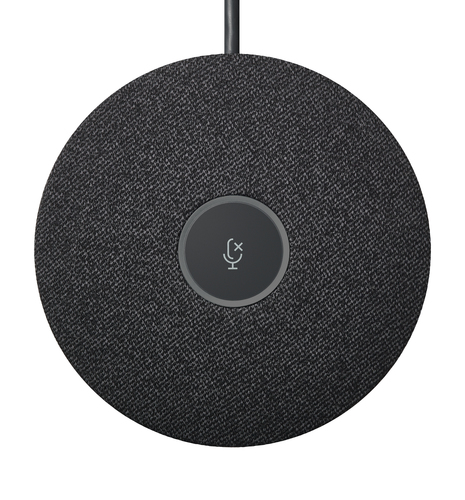

| Microphone dimensions (WxHxD) | 102 x 102 x 21 mm |

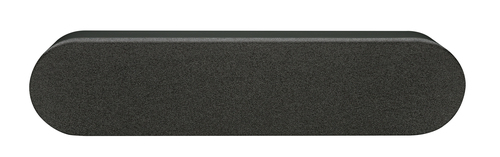

| Speaker dimensions (WxDxH) | 449 x 80 x 103 mm |

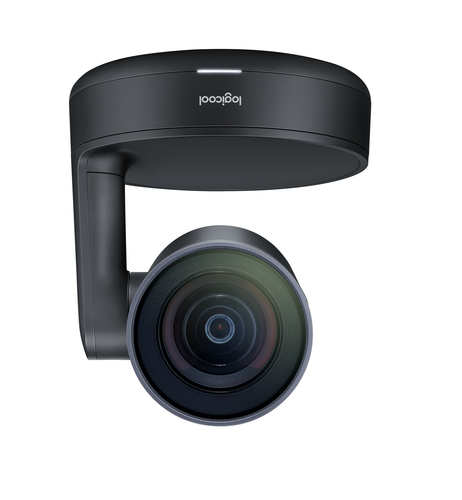

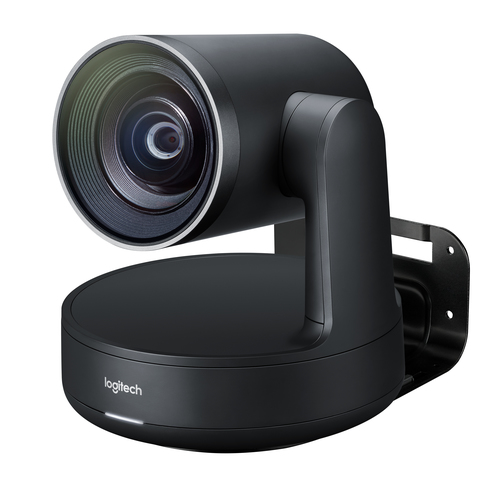

| Camera dimensions (WxDxH) | 152 x 152 x 182.5 mm |
| Package width | 275 mm |
| Package depth | 700 mm |
| Package height | 220 mm |
| Package weight | 8.53 kg |
| Packaging content | |
| External interface module included | Yes |
| Cables included | AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| Power cable length | 1.5 m |
| Networking cable length | 5 m |
| HDMI cable length | 2 m |
| AC adapter included | Yes |
| Speaker included | Yes |
| Remote control included | Yes |
| Camera included | Yes |
| Microphone included | Yes |
| Quick start guide | Yes |

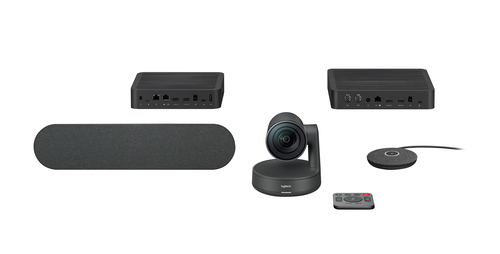

| Packaging content | Rally camera Rally display hub Rally table hub Rally speaker (x1) Rally mic pod (x1) Remote control USB Type C to USB Type C USB Type A to USB Type B CAT6A Ethernet cable HDMI Type A (x2) A/C cables (x2) Power supplies (x2) Documentation 2-year manufacturer’s guarantee |
