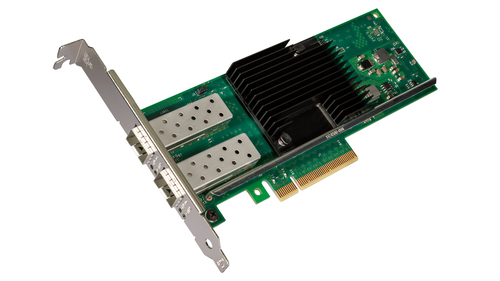

Intel Ethernet Converged Network Adapter X710-DA2 - Network adapter - PCIe 3.0 x8 low profile - 10 Gigabit SFP+ x 2
- Brand
- Intel
- Product code
- X710DA2
- SKU
- LOLK4DJIQD0F8
- EAN/GTIN
- 5032037063463
- Wired
- PCI Express 3.0 Fiber
- 10000 Mbit/s
- Internal Chipset: X710-AM2
Product Info
iWARP/RDMA
iWARP delivers converged, low-latency fabric services to data centers through Remote Direct Memory Access (RDMA) over Ethernet. The key iWARP components that deliver low-latency are Kernel Bypass, Direct Data Placement, and Transport Acceleration.
Intel® Data Direct I/O Technology
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
PCI-SIG* SR-IOV Capable
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Intel® Ethernet Power Management
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq)
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR |
| Supported network protocols | TCP, UDP, IP |
| VLAN tagging | Yes |
| Maximum operating distance | 10 m |
| LAN controller | Intel® X710 |
| Design | |
| Product colour | Black, Green |
| Internal | Yes |
| Chipset | X710-AM2 |
| LED indicators | Yes |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Power | |
| Power consumption (typical) | 4.5 W |
| System requirements | |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Linux operating systems supported | RedHat EL Linux 6.0 |
| Other operating systems supported | FreeBSD |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 35 - 90% |
| Weight & dimensions | |
| Width | 68.6 mm |
| Depth | 167.1 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Cable type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Market segment | Server |
| Target market | Artificial Intelligence, High Performance Computing |
| Flow control support | Yes |
| Management protocols | PXE, SNMP, RMON |
| Number of VLANs | 4096 |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Intel Trusted Execution Technology | No |
| Embedded options available | No |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| PCI-SIG* SR-IOV Capable | Yes |
| On-chip QoS and Traffic Management | Yes |
| Intel Flexible Port Partitioning | Yes |
| Storage-over-ethernet | Yes |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| Message signal interrupt | No |
| Low halogen options available | No |
| Intelligent Offloads | Yes |
| iWARP/RDMA | No |
| Fiber Channel over Ethernet | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Data Direct I/O Technology | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Storage Over Ethernet | iSCSI, NFS |
| Conflict-Free | Yes |
| Born on date | Q4'14 |
| Launch date | Q4'14 |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf |
| Product name | Intel Ethernet Converged Network Adapter X710-DA2 |
| Product type | Network Interface Card |
| Status | Launched |
| Number of QPI links | Dual |
| Last change | 64826824 |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Ethernet adapter ARK ID | 83964 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel® Ethernet Controller X710 |
| Cabling type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Product codename | Fortville |
