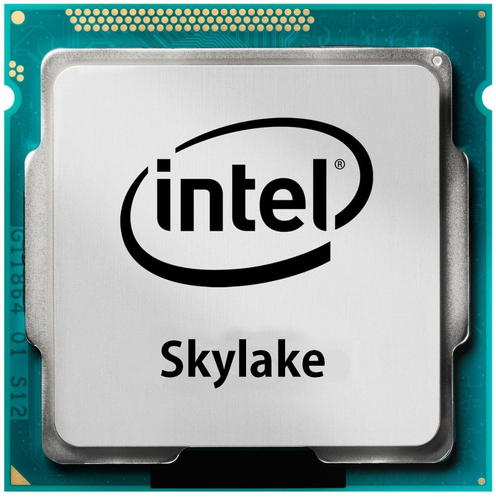

Intel Xeon E3-1505LV5 processor
CL8066202399804 - 8592978165321
Intel Xeon E3-1505LV5 - 2 GHz - 4 cores - 8 threads - 8 MB cache - FCBGA1440 Socket - OEM
- Brand
- Intel
- Product Family
- Xeon
- Product code
- CL8066202399804
- SKU
- MZRYWABYTAW8X
- EAN/GTIN
- 8592978165321
- Intel® Xeon® E3 v5 E3-1505LV5 2 GHz
- 8 MB Smart Cache BGA 1440
- Processor cores: 4 14 nm 64-bit 25 W
- Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM
- On-board graphics card Intel® HD Graphics P530
€525.94
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Powerful Delivery
Support greater HD and UHD video transcode performance with up to 18 AVC video transcodes per processor and up to 2 HEVC transcodes per processor.
Brilliant Remote Applications
Deliver appealing, vivid applications to your remote users with the advanced graphics performance of Intel® Iris™ Pro Graphics P580.
Lower Costs
Unlock larger amounts of video content to more consumers and businesses with highly dense, multi-processor servers and appliances that can deliver HD and UHD video without the need for add-in graphics cards.
High Image Quality
Improve visual experiences with Intel® Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
Specifications
Processor
Processor manufacturer
Intel
Processor model
E3-1505LV5
Processor base frequency
2 GHz
Processor family
Intel® Xeon® E3 v5
Processor cores
4
Processor socket
BGA 1440
Component for
Server/workstation
Processor lithography
14 nm
Processor threads
8
System bus rate
8 GT/s
Processor operating modes
64-bit
Processor boost frequency
2.8 GHz
Processor cache
8 MB
Processor cache type
Smart Cache
Thermal Design Power (TDP)
25 W
Box
No
Cooler included
No
Stepping
R0
Bus type
DMI3
Memory bandwidth supported by processor (max)
34.1 GB/s
Processor codename
Skylake
Processor code
SR2E0
Processor ARK ID
90618
Memory
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor
1600,1866,2133 MHz
Memory channels
Dual-channel
ECC
Yes
Graphics
On-board graphics card
Yes
On-board graphics card model
Intel® HD Graphics P530
Maximum on-board graphics card memory
1.7 GB
On-board graphics card outputs supported
Embedded DisplayPort (eDP), DisplayPort, HDMI, DVI
On-board graphics card base frequency
350 MHz
On-board graphics card dynamic frequency (max)
1000 MHz
Number of displays supported (on-board graphics)
3
On-board graphics card 4K support
Yes
On-board graphics card DirectX version
12.0
On-board graphics card OpenGL version
4.4
On-board graphics card maximum resolution (DisplayPort)
4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)
4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)
4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort)
60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)
60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)
24 Hz
On-board graphics card ID
0x191D
Features
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
Yes
Market segment
Embedded
Maximum number of PCI Express lanes
16
PCI Express slots version
3.0
PCI Express configurations
1x16, 2x8, 1x8+2x4
Supported instruction sets
SSE4.1, SSE4.2, AVX 2.0
CPU configuration (max)
1
Embedded options available
Yes
Graphics & IMC lithography
14 nm
PCI Express CEM revision
3.0
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G077159
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Yes
Intel® InTru™ 3D Technology
Yes
Intel® Wireless Display (Intel® WiDi)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Insider™
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Enhanced Intel SpeedStep Technology
Yes
Intel Trusted Execution Technology
Yes
Intel® Memory Protection Extensions (Intel® MPX)
Yes
Intel® Turbo Boost Technology 2.0 frequency
2.8 GHz
Intel® Transactional Synchronization Extensions
Yes
Intel Enhanced Halt State
Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Secure Key
Yes
Intel TSX-NI
Yes
Intel® OS Guard
Yes
Intel Clear Video Technology
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel 64
Yes
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel TSX-NI version
1.00
Conflict-Free processor
Yes
Intel® Boot Guard
Yes
Intel® vPro™ Platform Eligibility
Yes
Operational conditions
Tjunction
100 °C
Technical details
Bus bandwidth
8
Bus type units
GT/s
Launch date
Q4'15
Maximum resolution & refresh rate (DisplayPort)
4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)
4096x2304@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)
4096x2304@60Hz
Maximum resolution & refresh rate (VGA)
N/A
Processor cache
8192 KB
Product type
Processor
Status
Launched
Maximum memory
64 GB
Processor brand name
Intel Xeon
Supported memory types
DDR4-SDRAM, LPDDR3-SDRAM, DDR3L-SDRAM
Last change
63903513
Maximum resolution (WiDi)
1080p
Product family
Intel Xeon Processor E3 v5 Family
Bus speed
8 GT/s
Maximum graphics card memory
1.7 GB
Processor ID
0x191D
Servicing status
End of Servicing Lifetime
End of servicing updates date
Friday, September 30, 2022
Logistics data
Harmonized System (HS) code
8542310001
Weight & dimensions
Processor package size
42mm x 28mm
Other features
Maximum internal memory
64 GB
Maximum internal memory
65536 MB
Graphics output
eDP/DP/HDMI/DVI
Video decoding
Yes
