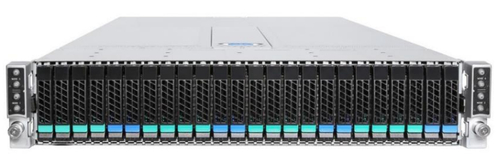

Intel Server Chassis H2224XXLR3 - Rack-mountable - 2U - up to 4 blades - SATA/SAS/PCI Express - hot-swap - power supply - hot-plug
- Brand
- Intel
- Product code
- H2224XXLR3
- SKU
- XF139CO3S7J5K
- Rack Server
- Supported HDD sizes: 2.5"
- Number of 2.5" bays: 24
- Power supply included 2130 W
- Black, Silver
Product Info
The Intel® Server Chassis H2000G family is ideally suited for high performance computing (HPC) and big data solutions.
For cloud and HPC scenarios, the H2000G Family is also available as part of fully validated Data Center Blocks from Intel. Learn more about how these data center building blocks can help reduce the complexity involved with designing, configuring and validating server solutions.
Cloud and Software-Defined Infrastructure (SDI)
Gain increased access to the private cloud and SDI market with fully-validated, pre-configured server systems featuring the latest Intel® technologies.
High Performance Computing (HPC)
Accelerating growth in the HPC market with unbranded, semi-integrated 1 and 2U rack system options built-to-order for intensive workloads.
| Design | |
|---|---|
| Form factor | Rack |
| Type | Server |
| Product colour | Black, Silver |
| Number of 2.5" bays | 24 |
| Number of storage drives supported | 24 |
| Rack mounting | Yes |
| Rack capacity | 2U |
| Side window | No |
| LED indicators | Yes |
| Power supply | |
| Power supply included | Yes |
| Power supply | 2130 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Redundant fans | N |
| Storage | |
| Supported HDD sizes | 2.5" |
| Hot-swap | Yes |
| Technical details | |
| Target market | High Performance Computing |
| Status | Launched |
| Backplanes | Included |
| Weight & dimensions | |
| Width | 87.9 mm |
| Depth | 438 mm |
| Height | 87 mm |
| Weight | 28 kg |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Other features | |
| Extended warranty available for purchase (select countries) | Yes |
| Launch date | Q3'17 |
| Redundant fans support | No |
| Power supply type | AC |
| CPU configuration (max) | 8 |
| Backplanes support | Yes |
| Hot-Plug support | Yes |
| Export Control Classification Number (ECCN) | 4A994 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Thermal Design Power (TDP) | 140 W |
| ARK ID | 93502 |
| Product family | 2U Rack Server Chassis |
| Product series | Intel® Server Chassis H2000P Family |
| Product codename | Buchanan Pass |
