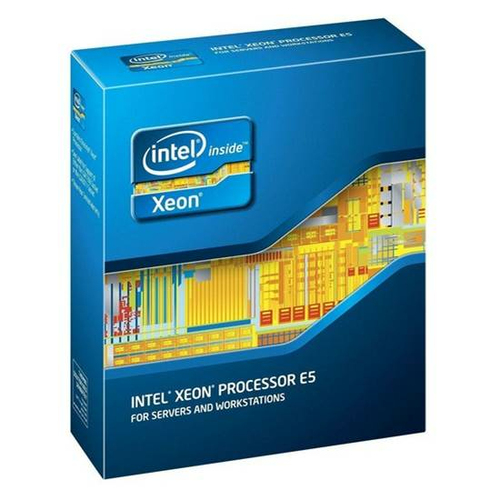

Intel Xeon E5-2640V3 processor

HP DL380 Gen9 E5-2640v3 Kit


Brand
Hewlett Packard Enterprise
Product Family
Xeon
Product code
719049-B21
SKU
1YPMJRIB3ZS1U
EAN/GTIN
887758114483
  • Intel Xeon E5 v3 E5-2640V3 2.6 GHz
  • 20 MB Smart Cache LGA 2011-v3
  • Processor cores: 8 22 nm 64-bit 90 W
  • Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
€1450.82 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

With the Intel® Xeon® processor E5-2600 v3 and Intel® Xeon® E5-1600 v3 product families at the heart of an agile, efficient data center, your organization can respond rapidly to changing business demands, protect data from cybercriminals and streamline data center operations.

A New Way to Think About the Data Center
Now designed for compute, storage, and networking to work better together, the latest Intel® Xeon® processor can help you meet today’s challenges while laying the groundwork for tomorrow’s fully-orchestrated data center.
- Deliver more automation capabilities for higher-performing, more secure clouds
- Solve increasing demands for storage and quickly crunch through complex data analytics problems
- Meet the speed of execution expected today
- Operate a more cost-effective, energy-efficient data center
- Measure and monitor.

Responsive Performance, Remarkable Energy Efficiency
The latest members of the Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to address technical computing challenges, enable cloud deployments, accelerate processor performance for peak loads, deliver intelligent storage or power data analytics. In comparison to previous generation processors you get:
- Up to 3x more performance
- The world's most energy efficient server
- Up to 1.9x more performance with Intel® AVX2
- Up to 1.7x increased virtual machine density
- Up to 1.4x increased memory bandwidth with DDR4.

Streamline Your Path to Private Cloud Services Delivery
Built-in virtualization delivers faster performance for core virtualization processes and improves the quality and control of services.
- Improved application performance, live migration, provisioning, dynamic load balancing, and disaster recovery.
- Greater service quality and utilization by monitoring individual virtual machines (VMs) in cache and addressing “noisy neighbor” issues.
- Enabling ultra-high isolation for usages such as financial services.

A Foundation for Trust and Security
Improve your ability to safeguard your data and infrastructure with foundational, hardware-assisted security capabilities.
- Encourage pervasive encryption by reducing associated performance penalties.
- Deploy a wide range of security applications with faster, higher-quality cryptographic keys and certificates.
- Protect your operating system by increasing security against malware, denial-of-service (DoS), privilege escalation, and platform surface attacks.
- Protect against attacks against the hypervisor, BIOS, firmware, and other prelaunch software components and gain visibility into system security to strengthen IT compliance.

Processor
Processor manufacturer Intel
Processor model E5-2640V3
Processor base frequency 2.6 GHz
Processor family Intel Xeon E5 v3
Processor cores 8
Processor socket LGA 2011-v3
Component for Server/workstation
Processor lithography 22 nm
Processor series Intel Xeon E5-2600 v3
Processor threads 16
System bus rate 8 GT/s
Processor operating modes 64-bit
Processor boost frequency 3.4 GHz
Processor cache 20 MB
Processor cache type Smart Cache
Thermal Design Power (TDP) 90 W
Box No
Cooler included No
VID Voltage Range 0.65 - 1.3 V
Stepping R2
Bus type QPI
Number of QPI links 2
Memory bandwidth supported by processor (max) 59 GB/s
Processor codename Haswell
Processor ARK ID 83359
Memory
Maximum internal memory supported by processor 768 GB
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 1600,1866 MHz
Memory channels Quad-channel
ECC Yes
Graphics
On-board graphics card No
Features
Execute Disable Bit Yes
Idle States Yes
Thermal Monitoring Technologies Yes
Market segment Server
Maximum number of PCI Express lanes 40
PCI Express slots version 3.0
PCI Express configurations 1x4, 1x8, 1x16
Supported instruction sets AVX 2.0
Scalability 2S
CPU configuration (max) 2
Embedded options available Yes
Physical Address Extension (PAE) 46 bit
PCI Express CEM revision 3.0
Export Control Classification Number (ECCN) 5A992C
Commodity Classification Automated Tracking System (CCATS) G077159
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology) Yes
Intel® Identity Protection Technology (Intel® IPT) No
Intel® Turbo Boost Technology 2.0
Intel Flex Memory Access No
Intel® AES New Instructions (Intel® AES-NI) Yes
Enhanced Intel SpeedStep Technology Yes
Intel Trusted Execution Technology Yes
Intel® Turbo Boost Technology 2.0 frequency 3.4 GHz
Intel® Transactional Synchronization Extensions No
Intel Enhanced Halt State Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Demand Based Switching Yes
Intel® Secure Key Yes
Intel TSX-NI No
Intel® OS Guard Yes
Intel 64 Yes
Intel Identity Protection Technology version 0.00
Intel Secure Key Technology version 1.00
Intel Virtualization Technology (VT-x) Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel TSX-NI version 0.00
Conflict-Free processor No
Intel® vPro™ Platform Eligibility Yes
Operational conditions
Tcase 74.3 °C
Technical details
Bus bandwidth 8
Bus type units GT/s
Launch date Q3'14
Processor cache 20480 KB
Product type Processor
Status Launched
Maximum memory 768 GB
Processor brand name Intel Xeon v2
Supported memory types DDR4-SDRAM
Last change 63903513
Product family Intel Xeon Processor E5 v3 Family
Bus speed 8 GT/s
Servicing status End of Servicing Updates
End of servicing updates date Friday, December 31, 2021
Logistics data
Harmonized System (HS) code 85423119
Packaging data
Package type Retail box
Weight & dimensions
Processor package size 52.5mm x 45mm
Other features
Intel® Virtualization Technology (Intel® VT) VT-d, VT-x
Maximum internal memory 768 GB
Maximum internal memory 786432 MB
