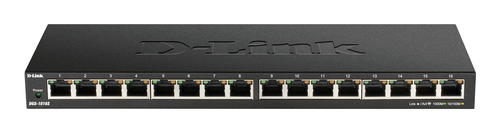

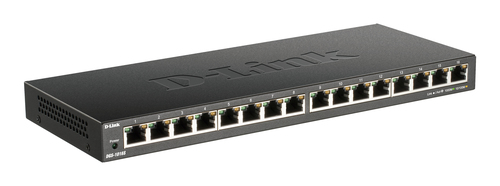

D-Link DGS-1016S network switch

DGS-1016S/B - 790069464256

D-Link DGS 1016S - Switch - unmanaged - 16 x 10/100/1000 - desktop


Brand
D-Link
Product code
DGS-1016S/B
SKU
AI6JECD2Q3FL4
EAN/GTIN
790069464256
  • 16 x Gigabit ports
  • Slim, low profile design for desktop or wall mount
  • Plug & Play simplicity for easy installation
  • Silent operation with fanless design
€59.8 (Inc. VAT)
(Delivery 2-4 working days)

Product Info

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Management features
Switch type Unmanaged
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Network
Networking standards IEEE 802.1p, IEEE 802.3az, IEEE 802.3x
10G support No
Copper ethernet cabling technology 1000BASE-T
Full duplex Yes
Half duplex Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Cable length detection Yes
Data transmission
Switching capacity 32 Gbit/s
MAC address table 8000 entries
Store-and-forward Yes
Number of queues 8
Jumbo frames support Yes
Jumbo frames 9216
Packet forwarding rate (1 Gbps) 1488000 pps
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 14880 pps
Packet buffer memory 0.512 MB
Design
Product colour Black
LED indicators Activity, Link, Power, Speed
Safety LVD
Certification CE, FCC, ICES 003, RCM
Performance
Plug and Play Yes
Fanless Yes
Mean time between failures (MTBF) 564658 h
Power
DC input voltage 12 V
Input current 1 A
Power consumption (max) 8.89 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 30.32 BTU/h
Weight & dimensions
Width 280 mm
Depth 110 mm
Height 25 mm
Weight 770 g
Logistics data
Harmonized System (HS) code 85176990
