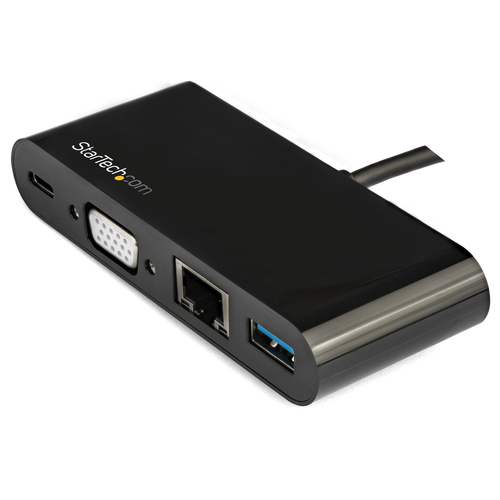

StarTech.com DKT30CVAGPD laptop dock/port replicator

DKT30CVAGPD - 0065030879163

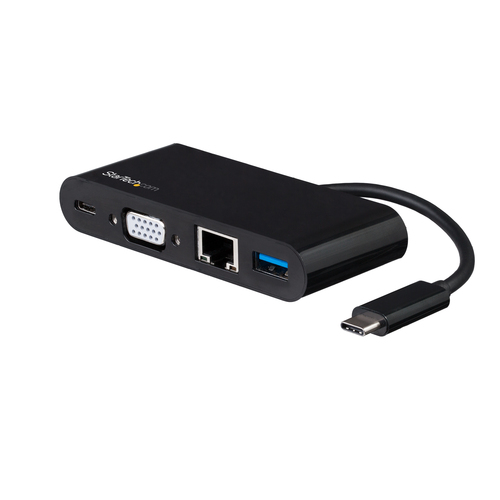

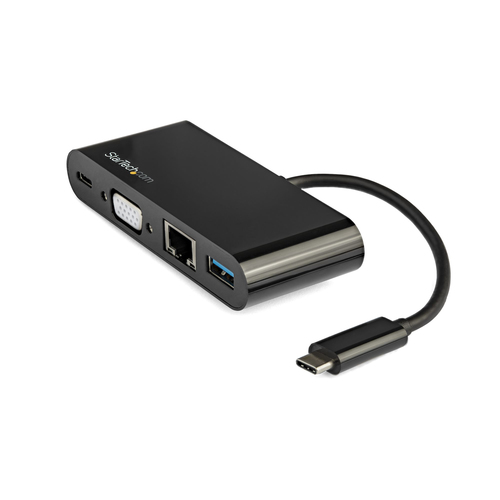

StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station


Brand
STARTECH
Product code
DKT30CVAGPD
SKU
XLH3IUHBEJSHR
EAN/GTIN
0065030879163

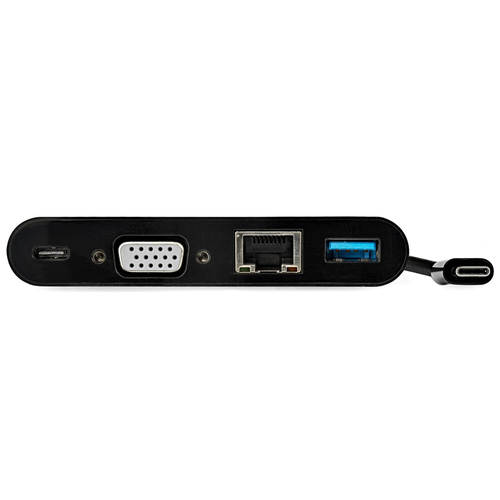

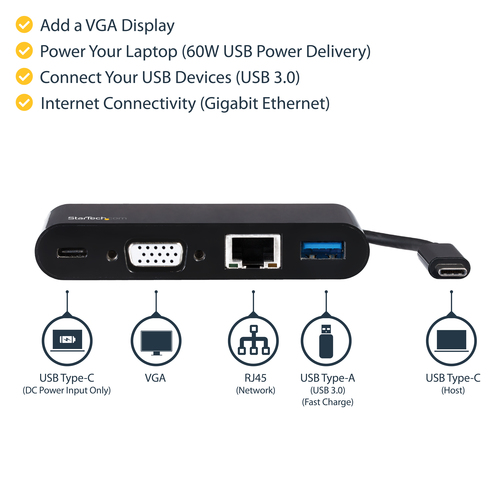

  • 4-IN-1 USB-C MULTIPORT ADAPTER: USB-C mini dock with 1080p VGA video output, Gigabit Ethernet (GbE), 1x 5Gbps USB Type-A 3.0 (BC 1.2) 1.5A fast-charge port & 60W Power Delivery passthrough charging
  • DESIGNED FOR PORTABILITY: Compact USB-C multiport adapter is ideally suited for on-the-go users, work from home, office workstations & boardrooms where only older VGA displays/projectors are available
  • POWERED BY LAPTOP OR EXTERNAL ADAPTER: The dock can be USB bus powered or with a USB-C power adapter; Charge the laptop via PD Passthrough w/ your USB-C power adapter (7W for dock, 53W for charging)

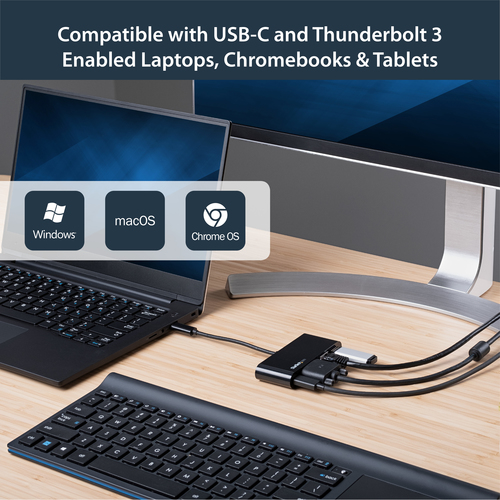

  • DEVICE COMPATIBILITY: Portable USB-C docking station is compatible w/ USB-C and Thunderbolt 3 laptops, ultrabooks, USB-C chromebooks, and phones for brands such as HP, Dell, Lenovo, and Macbooks
  • WIDE OPERATING SYSTEM COMPATIBILITY: With automatic driver setup, this all-in-one USB-C travel dock (USB 3.0/USB 3.1 Gen 1 SuperSpeed 5Gbps) supports operating systems incl Windows, macOS, ChromeOS
€63.03 (Inc. VAT)
Sold Out
(Delivery 2-4 working days)

Product Info

StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station (DKT30CVAGPD)

StarTech.com USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 1920 x 1200 pixels. Power source type: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Other operating systems supported: ChromeOS

Power and charge your laptop, and create a workstation by connecting to a VGA monitor, GbE, and a USB 3.0 deviceExpand the connectivity of your USB-C™ laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt™ 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows® and ChromeOS™ compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).Connect to a VGA monitor to give presentationsThis USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.Create a portable workstationCompact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.Fast and easy setupThe adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

Ports & interfaces
Connectivity technology Wired

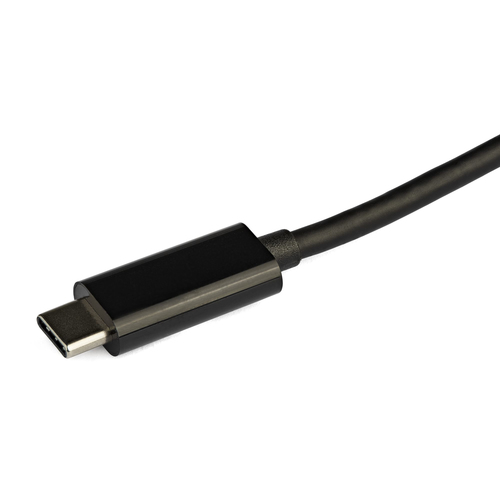

Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB Power Delivery Yes
USB Power Delivery up to 60 W
VGA (D-Sub) ports quantity 1
Microphone in No
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X Yes
Full duplex Yes
10G support No
Performance
Card reader integrated No
Data transfer rate 5 Gbit/s
Maximum digital resolution 1920 x 1200 pixels
Product colour Black
UASP support Yes
Housing material Plastic
Certification CE, FCC, REACH
Power
Power source type USB
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac compatibility Yes
Mac operating systems supported Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported ChromeOS
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -10 - 80 °C
Operating relative humidity (H-H) 10 - 85%
Sustainability
Sustainability certificates RoHS

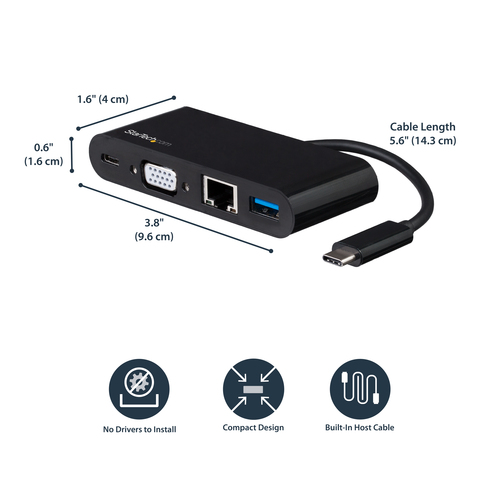

Weight & dimensions
Width 40 mm
Depth 96 mm
Height 16 mm
Weight 49 g
Packaging data
Package width 140 mm
Package depth 172 mm
Package height 30 mm
Package weight 125 g

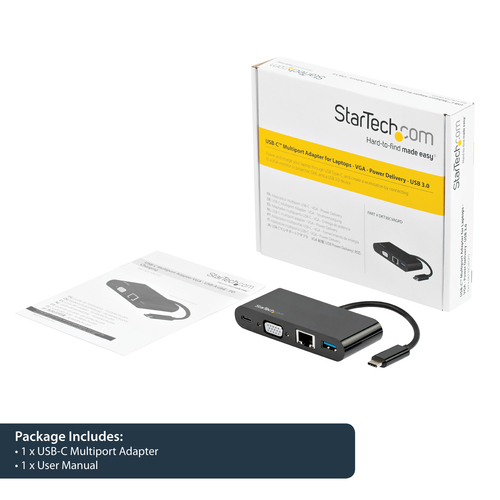

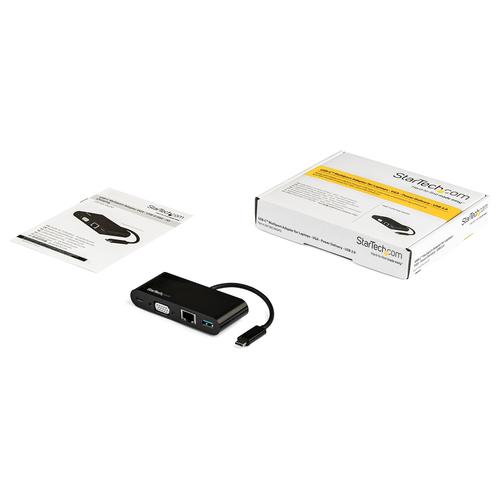

Packaging content
Manual Yes
Logistics data
Products per master (outer) case 60 pc(s)
Master (outer) case width 330 mm
Master (outer) case length 530 mm
Master (outer) case height 310 mm
Harmonized System (HS) code 84733020
Other features
Cable length 0.143 m
Chipset VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153
